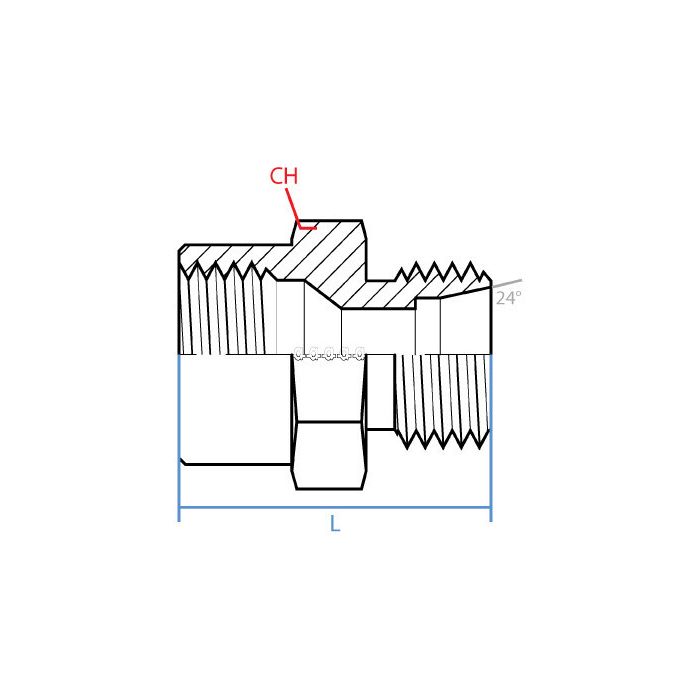

main product photo

Fjic X Male Din 2353S

Ask A Question

Description & Features

Designed for precision and durability this connector from Adaptall America ensures a reliable sealing solution for various industrial applications. Crafted from high-quality steel this straight-shaped connector measures 43.5mm in length and 35mm in width providing robust performance in demanding environments.

With a female 1-1/16" - 12 UN JIC on one side and a male M30 x 2.0 DIN tube on the other the Fjic X Male Din 2353S is engineered to facilitate secure and efficient connections. The connector's versatile design accommodates a range of metric tubing making it ideal for custom configurations and exacting standards.

Key specifications include a 3/4" JIC size on one end and an S20 DIN tube on the other. This fitting does not require adjustment or the use of a check valve ensuring straightforward installation and maintenance.

Supplier Part Number: 9624-12-S20-30

Specifications

Connection Size 1
3/4 in
Connection Size 2
20 mm
Connection Type
Female JIC, Male Metric
Connection Type 1
Female JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
43.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
35 mm
Material
Steel
Material Construction
Carbon Steel
Series
9624 Series
Thread Size
M30x2 x 1-1/16-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Steve C on Apr 6, 2026, 2:08 PM
Got a line running M30 x 2.0 metric tube on one end and need to tie into a JIC system on the other. this the right fitting for that?
Answer by: Customer Support on Apr 7, 2026, 5:44 PM
Straight shot connection between those two standards is exactly what this fitting handles. One side is a female 1-1/16"-12 UN JIC, sized at 3/4" JIC, and the other is a male M30 x 2.0 DIN tube fitting at S20. Steel construction, straight configuration, no check valve needed and no adjustment required. If your tube and thread specs match up to those, you're good to go.
Question by: Dean H on Dec 6, 2025, 11:13 AM
got a hose end that’s 1-1/16-12 JIC female, will this screw right onto it and give me a DIN M30 x 2.0 male on the other side?
Answer by: Customer Support on Dec 7, 2025, 8:37 PM
Built for that exact conversion, it has a female 1-1/16 inch 12 UN JIC connection on one end and a male M30 x 2.0 DIN tube connection on the other. It is a straight steel connector.
