Fjic X Male Din 2353S

Description & Features

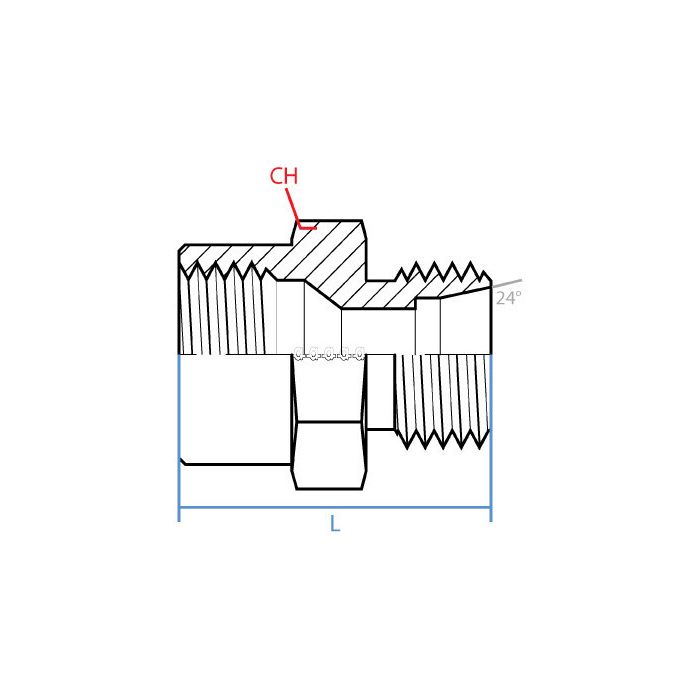

Ensure reliable connections with this precision-engineered component from Adaptall America. This steel fitting features an M36 X 2.0 Din Tube male thread on one end and a 1-5/16 - 12 UN female Jic thread on the other making it a versatile choice for various industrial applications.

Designed for durability this straight connector measures 44.2mm in length and 41mm in width. Its steel construction ensures long-lasting performance under demanding conditions while the precise threading offers a secure fit minimizing the risk of leaks.

This part is particularly suitable for use where a robust and secure connection between metric and imperial systems is essential. Whether used in machinery or specialized equipment the combination of male Din and female Jic threads provides a reliable solution for your technical needs.

Supplier Part Number: 9624-16-S25-36

Specifications

Connection Size 1 1 in	Connection Size 2 S25	Connection Type Female JIC, Male Metric	Connection Type 1 Female JIC	Connection Type 2 Male DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 44.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 41 mm	Material Steel	Material Construction Carbon Steel	Series 9624 Series	Thread Size 1-5/16-12 x M36x2

Product Questions & Answers (1)

Question by: Denise R on Oct 12, 2025, 11:52 AM

Got a hydraulic line running M36 x 2.0 DIN tube on the equipment side and need to tie into a JIC fitting on the hose end. This the right adapter for that?

Answer by: Customer Support on Oct 14, 2025, 6:53 AM

That's exactly what this fitting is built for. One end carries the M36 x 2.0 male DIN tube thread and the other is a 1-5/16-12 UN female JIC, so it bridges that metric-to-imperial gap in a straight inline connection. Steel construction keeps it solid under the kind of pressure and vibration you'd see in typical hydraulic machinery. Part number is 9624-16-S25-36 if you need to pull it up or match it against your parts list.
