Fjic X Male Din 2353L

Ask A Question

Description & Features

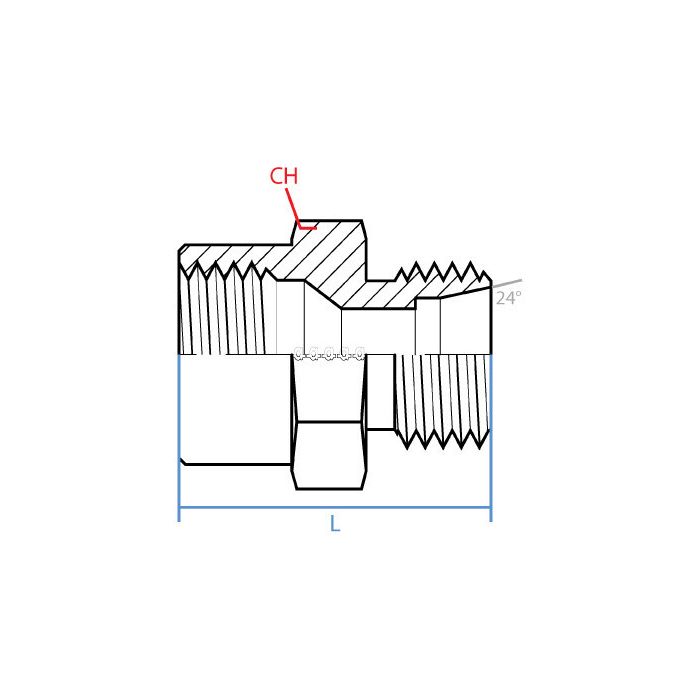

This straight steel adapter features a female 1-1/2" JIC side 1 connection and a male Din 2353L side 2 connection with a L35 size.

The Fjic X Male Din 2353L adapter offers a reliable solution for connecting JIC and DIN tube fittings. With Adaptall Ch Width of 57mm and Adaptall L Length of 51.7mm, this adapter ensures precise and secure connections in demanding hydraulic applications. The side 1 callout is 1-7/8 - 12 UN, while the side 2 callout is M45 X 2.0.

SKU: 9624-24-L35-45

Supplier Part Number (MPN): 9624-24-L35-45

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
35 mm
Connection Type
Female JIC, Male Metric
Connection Type 1
Female JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
51 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9624 Series
Thread Size
1-7/8-12 x M45x2

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Steve R on Mar 9, 2026, 7:04 PM
Got a hydraulic line running 1-1/2" JIC on one end that needs to tie into a DIN tube fitting on the other, this the right adapter for that?
Answer by: Customer Support on Mar 11, 2026, 2:15 PM
For a 1-1/2" female JIC to a male DIN 2353L connection, yeah, that's exactly what this adapter is built for. The JIC side runs a 1-7/8-12 UN thread and the DIN side is M45 x 2.0 at an L35 size. Straight configuration, so no offset to account for during installation. Steel construction throughout.
Question by: Hugh H on Mar 30, 2026, 9:38 AM
trying to hook a 1-1/2 jic female hose end to a DIN 2353L tube fitting, is this the right adapter?
Answer by: Customer Support on Apr 1, 2026, 7:27 AM
For that kind of hookup, this adapter bridges a female JIC side 1 (1-1/2 inch, 1-7/8 - 12 UN) over to a male DIN 2353L side 2 in size L35 with an M45 x 2.0 thread.
Question by: Shane R on Feb 5, 2026, 1:30 PM
Hey, will this here adapter work for connecting a 1-1/2" JIC to a DIN tube? I got a L35 size I need to hook up.
Answer by: Customer Support on Feb 7, 2026, 6:07 AM
Absolutely, this straight steel adapter is designed to connect a 1-1/2" JIC side to a male DIN 2353L side, specifically with that L35 size you mentioned.
