Male Din (Sealed) X Female Npt

Description & Features

The Male Din (Sealed) X Female Npt by Adaptall America is an essential connector for industrial applications needing reliable conversion between metric and pipe fittings.

Engineered from robust steel it ensures durability under demanding conditions. On Side 1 it features an M20 x 1.5 male Din tube fitting while Side 2 offers a 1/4" - 18 NPTF female connection. This straight adapter measures 37.2mm in length and 27mm in width making it suitable for compact setups.

With no need for adjustments calibration or additional accessories this connector streamlines integration processes in various industrial environments. The absence of color coding electrical components and machine-mounting capabilities simplifies its functionality focusing solely on its primary conversion role.

Its sealed design and precise threading ensure leak-free performance critical for high-pressure scenarios. This connector exemplifies quality and efficiency meeting stringent industry standards.

Supplier Part Number: 9636S-20-S12-04

Specifications

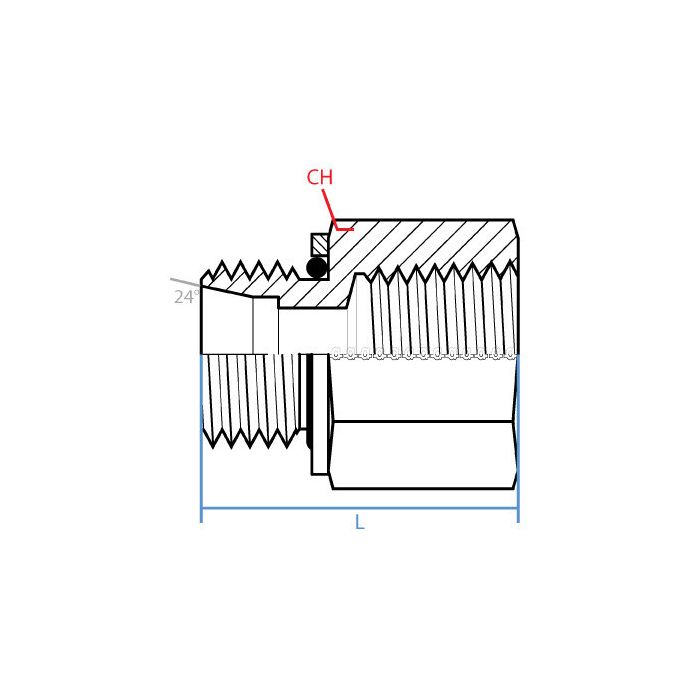

CH Width 27mm	L Length 37.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-06161458, Alternate Part Number MINO-03671X00168	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9636S-20-S12-04	Product Weight 0.32 lbs

Product Questions & Answers (2)

Question by: Ray H on Jun 13, 2025, 4:34 PM

Just want to be double sure, this here adapter, it'll fit a standard 1/4" NPT fitting, right?

Answer by: Customer Support on Jun 14, 2025, 8:28 PM

Yes, this adapter features a 1/4" - 18 NPTF female connection on one side, which will connect to a standard 1/4" NPT fitting.

Question by: Kurt W on Mar 11, 2026, 6:19 PM

got a hose with 1/4-18 NPTF on it and a metric DIN tube fitting on the other side. is this the right adapter to tie those together?

Answer by: Customer Support on Mar 13, 2026, 6:24 AM

For hooking those two thread styles together, this adapter is set up exactly for that job. Side 1 is an M20 x 1.5 male DIN 2353 S12 tube fitting and Side 2 is a 1/4 - 18 NPTF female connection, in a straight steel body.
