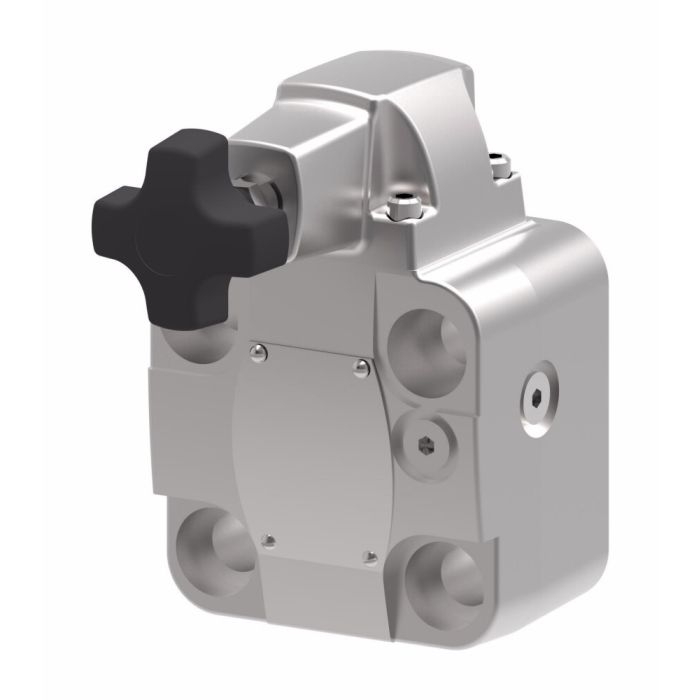

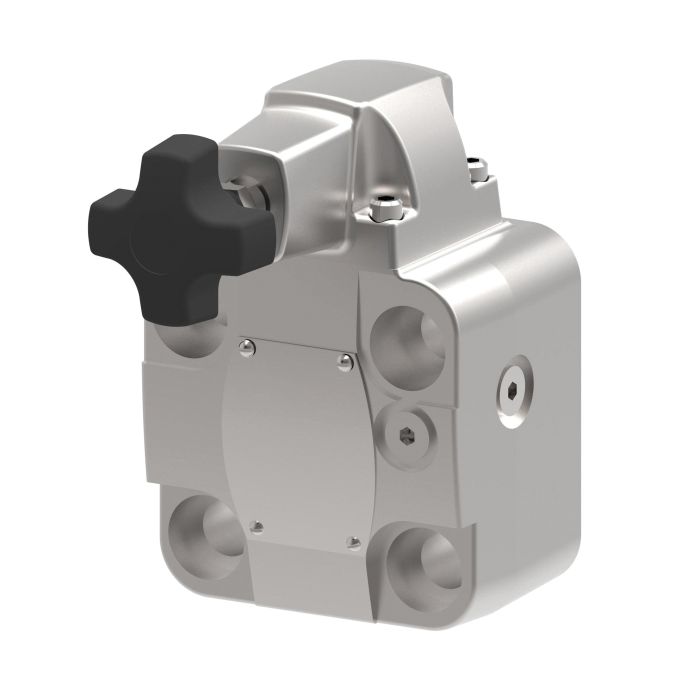

Vickers F3 CG 06 BEC DGL8C

Description & Features

Eaton Vickers F3 CG 06 BEC DGL8C pressure control valves are designed for applications requiring adjustable pressure relief or regulation. These valves limit the pressure in a hydraulic circuit to a desired maximum.

Features include a plug-and-play design and moisture resistance for reliable performance. The Vickers F3 CG 06 BEC DGL8C has a maximum flow rate of 227 liters per minute and uses Viton seals. Its width is 4.19 inches.

SKU: 989067

Supplier Part Number (MPN): 989067

Specifications

Actuator Type Solenoid	Adjustment Range 8.5 to 70 bar, 100 to 210 bar	Adjustment Range Head 2 Vent	Adjustment Type Screw with Locknut	Design 20 Series	Dimensions 6.28 in L x 4.19 in W x 6.06 in H	Electrical Connection Flying Leads	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Media Phosphate Ester	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Fluorocarbon	Series F3-CG-06 Series	Valve Mount Type Subplate/Manifold	Voltage Rating 115 VAC at 60 Hz

Product Questions & Answers (3)

Question by: Janet C on Oct 10, 2025, 9:09 AM

Flow rate on this one is listed at 227 liters per minute, is that enough to handle most standard industrial hydraulic circuits, or is it more of a mid-range unit?

Answer by: Customer Support on Oct 12, 2025, 6:31 AM

For a good chunk of industrial hydraulic setups, 227 liters per minute puts this valve right in a solid working range. It's not a high-volume unit built for the biggest systems out there, but for circuits that need adjustable pressure relief or regulation without pushing extreme flow demands, it fits the bill well. If your system runs close to or above that threshold, you'd want to size up, but for moderate-duty pressure control work this handles the job.

Question by: Denise F on Jun 27, 2025, 2:35 PM

So this valve here, it's meant to keep the pressure from going too high in my system, right?

Answer by: Customer Support on Jun 28, 2025, 3:27 PM

That's correct. This Eaton Vickers pressure control valve is designed to limit the pressure in a hydraulic circuit to a desired maximum, providing adjustable pressure relief or regulation.

Question by: Terry W on Aug 28, 2025, 2:19 PM

got a system that needs an adjustable relief valve to keep pressure from spikin, is this one meant for that kind of job

Answer by: Customer Support on Aug 30, 2025, 6:38 AM

For adjustable pressure relief or regulating work, this valve is built to limit pressure in a hydraulic circuit to a set maximum, which helps keep the system from climbing past the pressure you want.
