WASHER

Description & Features

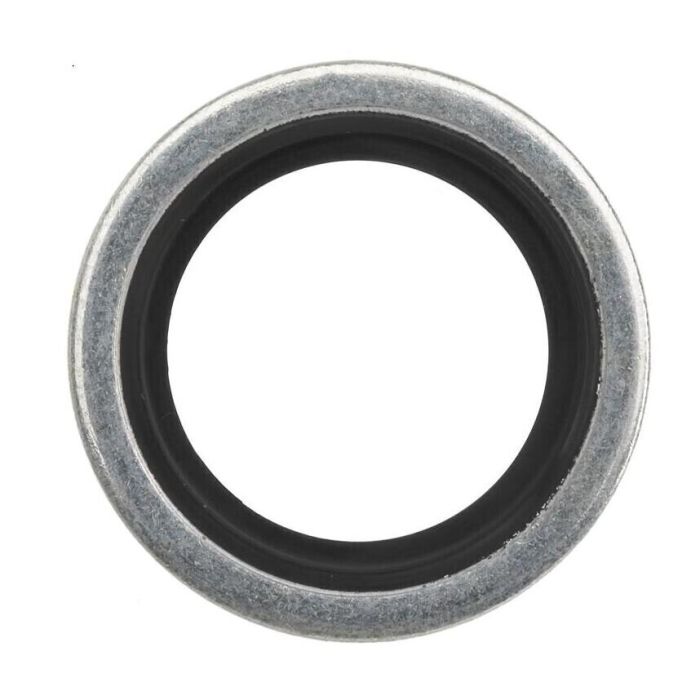

Designed for use with size 08 male BSPP threaded connections, this bonded seal washer conforms to ISO 1179 and provides a reliable face seal at the port interface. The bonded construction combines a straight steel carrier with a 90 durometer NBR sealing element, giving the assembly the rigidity needed to seat consistently under torque while the elastomer accommodates surface variation to prevent leakage.

With an inner diameter of 18.64 mm and an outer diameter of 28.58 mm, this Washer is sized for standard 08 MBSPP ports commonly found in hydraulic manifolds, valves, and cylinder end caps. NBR compound at 90 durometer offers good resistance to petroleum-based hydraulic fluids across a broad service temperature range. Manufactured by Brennan Industries under the 9900 Series. California residents should note that this product is subject to Prop 65 warning requirements.

SKU: 9900-08

Supplier Part Number (MPN): 9900-08

Specifications

Brand BRENNAN	Color Black	Cubic Inch Space L x W x H Dimensions 0.1 cu-in	Durometer 90	For Use With British Threaded Fittings	Inside Diameter 0.85 in	Material Nitrile/Steel	Material Construction Buna-N/Steel	Operating Temperature -40 to 250 deg F	Series ISO-1179-BSPP-Bonded-Seal Series

Similar Products

Model Number	Inside Diameter	Outside Diameter
9900-02	0.41 in
9900-04	0.54 in
9900-06	0.68 in
9900-12	1-1/16 in
9900-16		1 in
9900-20	1.699 in
9900-24
9900-32

Product Questions & Answers (1)

Question by: Dwight W on Sep 1, 2025, 4:29 PM

So this here's just a washer for them BSPP fittings, right? Size 08? Just wanna make sure I'm gettin' the right thing.

Answer by: Customer Support on Sep 3, 2025, 6:42 AM

That's right, this bonded seal washer is made to fit size 08 male BSPP threaded connections. It's built to the ISO 1179 standard, so it should give you a good face seal at the port.
