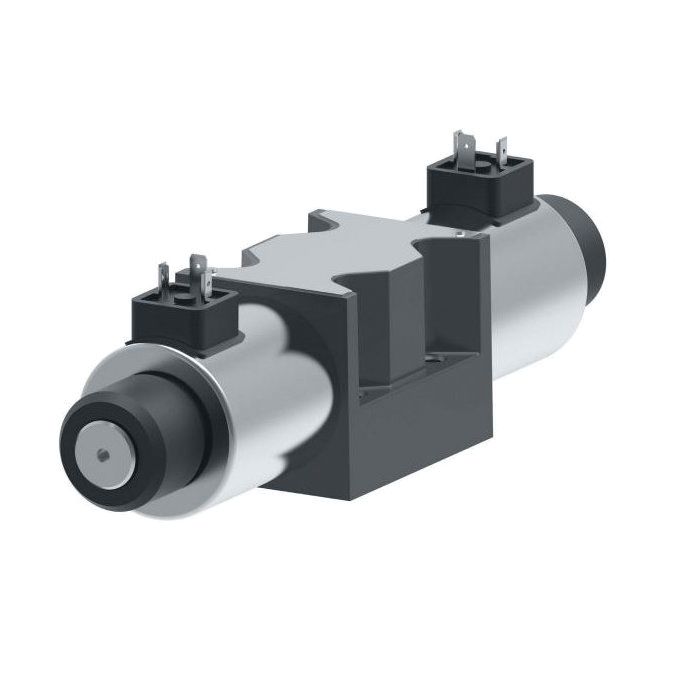

VICKERS DG4V 5 2C MU EH6 20

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG4V 5 2C MU EH6 20 is a single-stage directional control valve offering three- or four-way flow control with a maximum flow rate of 120 litres per minute. Buna-N seals provide reliable fluid compatibility across a range of hydraulic media.

Rated at 38 watts and mountable on industry-standard surfaces, this valve suits a broad range of applications including machine tool, press, primary metal, marine/offshore, die casting and foundry, turbine control, and test and simulation equipment. The DG4V-5 series supports thousands of configuration variants, making it adaptable across diverse hydraulic system requirements.

Alternate part number: DG4V52CMUEH620

SKU: 990927

Supplier Part Number (MPN): 990927

Alternate Part Numbers: DG4V52CMUEH620

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
20 Series
Dimensions
9.68 in L x 2.8 in W x 4.53 in H
Domestic/Import
Import
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
C
Series
DG4V-5 20 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Lee M on Jul 19, 2025, 9:51 PM
Reckon this'll hold up okay in a paper mill environment, with all the moisture and whatnot?
Answer by: Customer Support on Jul 21, 2025, 9:29 AM
Buna-N seals give this valve good compatibility with a range of hydraulic fluids, which should help it hold up, but you'll want to check that the fluid you're using is compatible with Buna-N.
Question by: Peggy B on Mar 31, 2026, 9:21 AM
got a setup that needs a directional valve, is this one 3-way or 4-way?
Answer by: Customer Support on Apr 2, 2026, 6:16 AM
Function-wise, it is a single-stage directional control valve that provides three- or four-way flow control, so it can be applied in either type of circuit depending on the configuration.
Question by: Wes W on Feb 3, 2026, 8:23 AM
flow rate on this valve is listed at 120 litres per minute, that enough for a press application or is it gonna be cutting it close?
Answer by: Customer Support on Feb 4, 2026, 1:54 PM
For press applications, 120 litres per minute is a solid flow capacity, and the DG4V-5 series is actually called out specifically for press use. Whether it's enough depends on your system's demand at peak cycle, but the valve itself is rated and suited for that environment. If your press isn't pulling anywhere near that ceiling, you've got plenty of headroom.
