Male Bspt X Push On Hose Barb

Description & Features

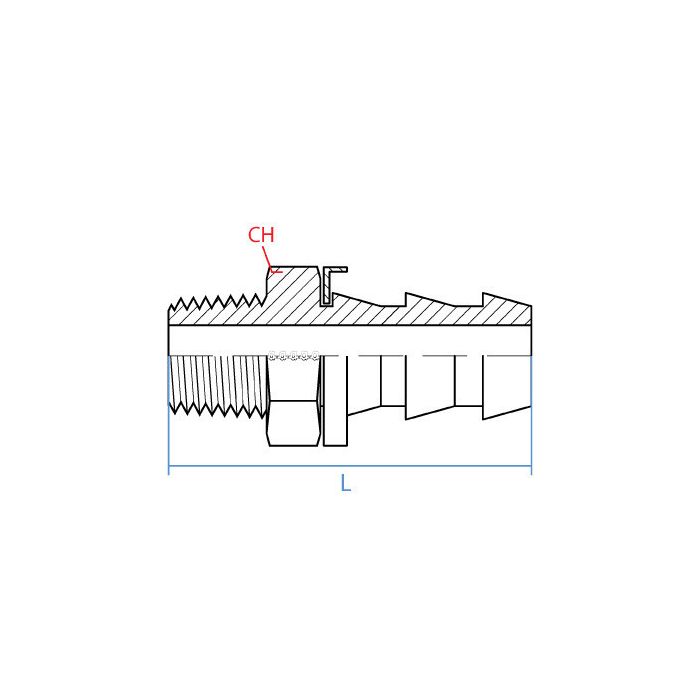

Constructed from steel in a straight configuration, this 3/8" Male Bspt X Push On Hose Barb provides a reliable transition between a male BSPT threaded connection and a push-on hose barb end. The male side carries an R 3/8-19 thread callout, while the barb end accommodates 3/8" hose. Overall length is 48.9mm, with wrench flats measuring 17.5mm and 9.5mm across the two hex positions.

Manufactured by Adaptall, this straight adapter is suited for hydraulic lines and fluid transfer assemblies where a BSPT male port needs to connect directly to push-on hose. Steel construction provides durability across a range of industrial hydraulic applications.

SKU: 9915-06-06

Supplier Part Number (MPN): 9915-06-06

Specifications

CH1 Width 17.5mm	CH2 Width 9.5mm	L Length 48.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspt	Side 2 Callout -	Side 2 Gender -	Side 2 Size 3/8"	Side 2 Type Hose Barb	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9915-06-06	Product Weight 0.09 lbs

Product Questions & Answers (1)

Question by: Gary H on Feb 17, 2026, 2:49 PM

got a port that’s R 3/8-19 BSPT. is this the right piece to go straight to a 3/8 hose barb?

Answer by: Customer Support on Feb 19, 2026, 11:33 AM

For a straight adapter from a male BSPT thread to a push-on barb, it matches that setup. The threaded end is R 3/8-19 male BSPT, and the other end is a push-on hose barb sized for 3/8 inch hose.
