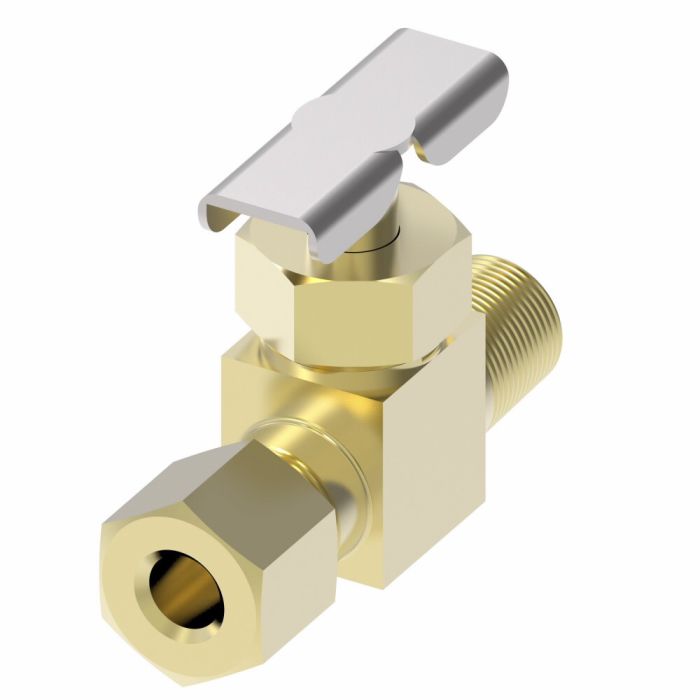

AEROQUIP BRASS ADAPTER

Description & Features

Featuring Dura-Kote plating for superior corrosion resistance, this Aeroquip brass adapter offers design flexibility with hundreds of styles to choose from. The Aeroquip brass adapter also provides higher operating pressures above SAE standards.

This flow control adapter has a male NPTF end type 1 and an end size 2 of 0.25.

SKU: A6760S

Supplier Part Number (MPN): A6760S

Specifications

Brand Aeroquip® by Danfoss	Body Material Brass	Connection Type Tube OD x MPT	Dimensions 1.82 in L x 0.56 in W	Disc Material Metal	End Gender 1 Male	Handle Material Brass	Media Air, Water	Number of Handles 1	Number of Ports/Ways 2	Seal Material Metal	Seat Material Brass	Softgoods Material Buna-N	Stem Material Brass	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Nominal Size	Connection Type	Dimensions
A555S		Tube OD x MPT	1.53 in L
A6765S	1/4 in	Tube OD	1.13 in L x 0.44 in W
A6775S	3/8 in	Male SAE 37 deg	1.5 in L x 0.56 in W
A6845		Tube OD x MPT	1.5 in L x 0.56 in W
A6855		Tube OD x MPT	1.73 in L x 0.56 in W
