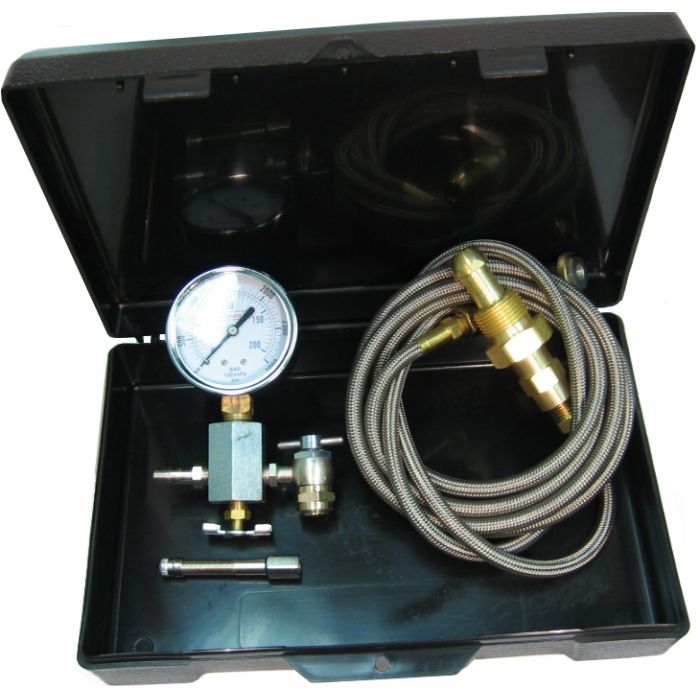

Accumulator Charging and Gauging Assemblies
Description & Features
| Installation | (A) Remove gas valve guard (protective cap) and valve cap. (B) Fill accumulator approximately 10% full with system fluid through fluid port for a cushion. (C) Install recommended Gas Charging Assembly on the gas valve stem at top of unit. (D) Pre-Charge very slowly up to 25 PSIG using dry nitrogen gas only. A gas regulator is recommended. WARNING: Initial pre-charging at a rate above 25 PSIG can cause bladder to burst. (E) Continue pre-charging to desired pressure by increasing nitrogen flow. (F) Remove charging assembly, replace valve cap and guard. |
| Warning | Use dry nitrogen gas ONLY. |
Products
| Model Number | Product Description | Price | Action |
|---|---|---|---|
AI-CG3-3KT-SS Accumulator Charging Assembly |
ACCUMULATORS CHARGE/GAUGE ASSEMBLY KIT |
|
Product Questions & Answers (1)
Question by: Jerry B on Feb 19, 2026, 7:26 AM
So, I gotta pre-charge this accumulator... what's the right way to hook this thing up and get it done without messin' anything up?
Answer by: Customer Support on Feb 20, 2026, 12:29 PM
Installation involves removing the gas valve guard and valve cap, then filling the accumulator about 10% full with system fluid for a cushion. After that, you can install the gas charging assembly on the gas valve stem and start pre-charging slowly with dry nitrogen gas, using a gas regulator.
