Air Brake Air Chamber Hose Assemblies, Up To 225 PSI

Description & Features

1/2 Inch Hose Assemblies	H33808 Hose with 7/8 inch O.D., 225 PSI Working Pressure, 900 PSI Burst Pressure, 4 inch Minimum Bend Radius.
3/8 Inch Hose Assemblies	H33806 Hose with 3/4 inch O.D., 225 PSI Working Pressure, 900 PSI Burst Pressure, 3-1/2 inch Minimum Bend Radius.
Application	Air brake air chamber hose lines.
Construction	H338 Air Brake Hose with synthetic inner tube, multi-fiber spiral reinforcement, perforated synthetic cover. Rigid male pipe on one end. Swivel male pipe adapter on other end.
Temperature Range	-40°F to +200°F.

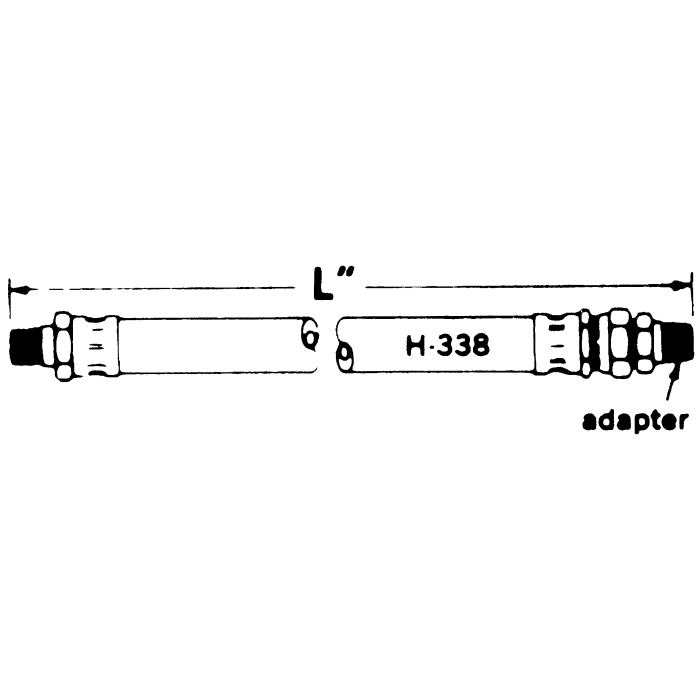

Model Number	Hose I.D.	Includes	L
W28472 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	24.125
W28473 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	28.375
W28539 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	20.375
W28555 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	36.125
W28559 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	41.125
W86471 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	18
W86472 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	24
W86473 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	28.375
W86550 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	30
W86554 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	34.375
W86555 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	36
W86559 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	41.125
