Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

Description & Features

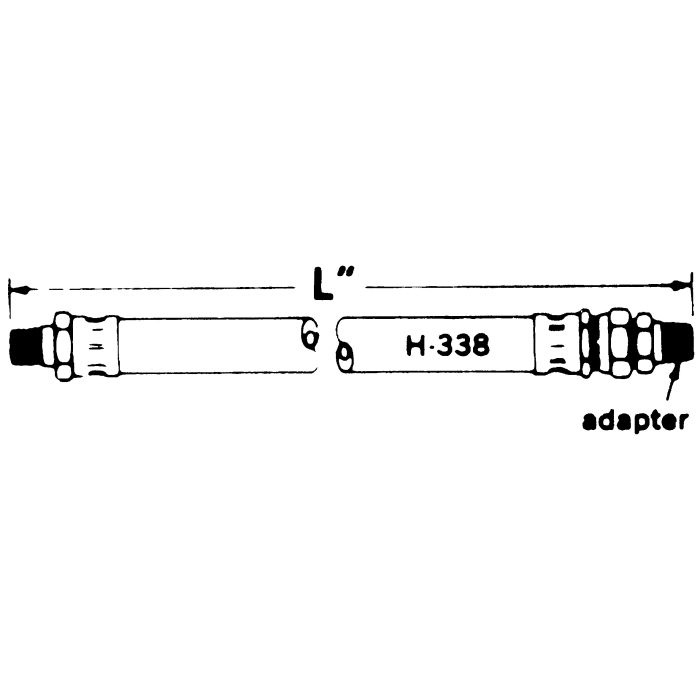

The Royal Brass & Hose Air Brake Air Chamber Hose Assembly is engineered for robust performance in air brake systems. Featuring a durable H338 air brake hose with a synthetic inner tube and multi-fiber spiral reinforcement, this assembly ensures reliable operation across a wide temperature range of -40°F to +200°F. The assembly includes a 1/4 male pipe fitting on one end and a 1/4 male pipe swivel adapter on the other, connected by a 3/8-inch hose. With a 225 PSI working pressure and a 900 PSI burst pressure, it offers dependable performance in demanding applications.

Designed with a 28.375-inch length and a minimum bend radius of 3-1/2 inches, this hose assembly suits various air brake air chamber applications. Its perforated synthetic cover enhances durability and longevity, making it an ideal choice for industrial settings.

SKU: W28473

Supplier Part Number (MPN): 06ABX4X28

Alternate Part Numbers: C1ER65

Specifications

Brand Royal Brass & Hose	Brand Royal Brass & Hose	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Includes 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	L 28.38	Supplier Part Number 06ABX4X28	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1ER65	Product Weight 4.00 lbs

Similar Products

Model Number	Hose I.D.	Includes	L
W28472 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	24.125
W28473 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	28.375
W28539 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	20.375
W28555 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	36.125
W28559 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	41.125
W86471 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	18
W86472 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	24
W86473 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	28.375
W86550 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	30
W86554 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	34.375
W86555 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	36
W86559 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	41.125
