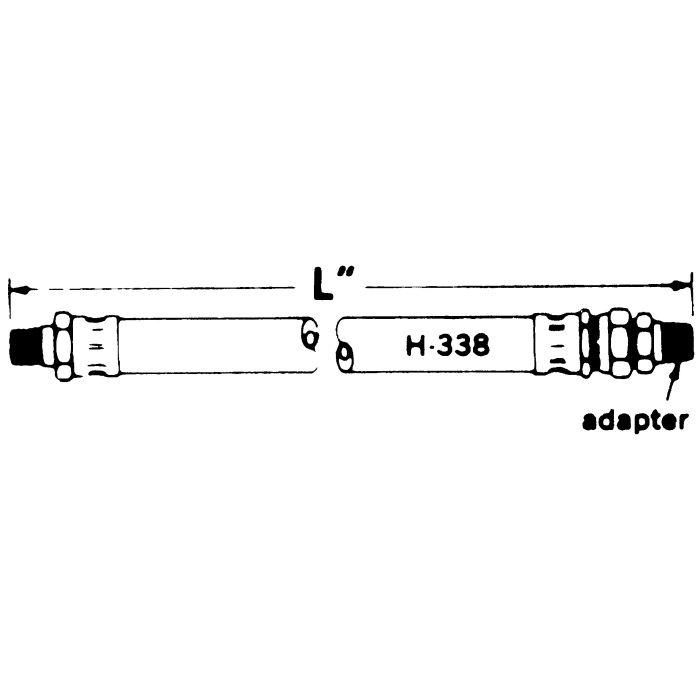

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

Description & Features

The Royal Brass & Hose Air Brake Air Chamber Hose Assembly is designed for efficient air brake applications, featuring a durable H338 Air Brake Hose with a synthetic inner tube and a perforated synthetic cover. This robust construction is reinforced with a multi-fiber spiral, ensuring long-lasting performance under demanding conditions. The hose is equipped with a 1/4" male pipe and a 1/4" male pipe swivel adapter, along with a 3/8" hose, making it suitable for various air brake systems.

With a working pressure of up to 225 PSI and a burst pressure of 900 PSI, this hose assembly is built to handle high-pressure environments. Its temperature range from -40°F to +200°F ensures reliable operation in diverse climates. The 36.125-inch length and 0.375-inch inner diameter provide the necessary flexibility and compatibility for air brake chamber applications.

SKU: W28555

Supplier Part Number (MPN): 06ABX4X36

Alternate Part Numbers: 38166-03612, C1ER70

Specifications

Brand Royal Brass & Hose	Brand Royal Brass & Hose	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Includes 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	L 36.13	Supplier Part Number 06ABX4X36	Thread Sealant No	Alternate Part Numbers Alternate Part Number 38166-03612, Alternate Part Number C1ER70	Product Weight 7.00 lbs

Similar Products

Model Number	Hose I.D.	Includes	L
W28472 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	24.125
W28473 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	28.375
W28539 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	20.375
W28555 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	36.125
W28559 Air Brake/Chamber Hose Assembly	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	41.125
W86471 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	18
W86472 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	24
W86473 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	28.375
W86550 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	30
W86554 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	34.375
W86555 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	36
W86559 Air Brake/Chamber Hose Assembly	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	41.125

Product Questions & Answers (2)

Question by: Brent G on May 30, 2025, 9:54 PM

What's the temperature range on this hose assembly? Got rigs running in some pretty brutal winters and hot summers both, need to know it'll hold up.

Answer by: Customer Support on Jun 1, 2025, 6:06 AM

Rated from -40°F up to +200°F, so it handles both hard freezes and high-heat summer conditions without issue. For air brake chamber lines running through seasonal extremes, that range covers just about anything you'd throw at it in regular over-the-road or fleet use.

Question by: Jimmy E on Mar 5, 2026, 1:01 PM

trying to replace an air brake chamber line i’ve got, what are the ends on this hose assembly?

Answer by: Customer Support on Mar 6, 2026, 3:01 PM

Both ends are 1/4 inch male pipe threads, but one side is a rigid male pipe and the other side is a 1/4 inch male pipe swivel adapter. The hose itself is 3/8 inch I.D. and the overall assembly length is 36.125 inches.
