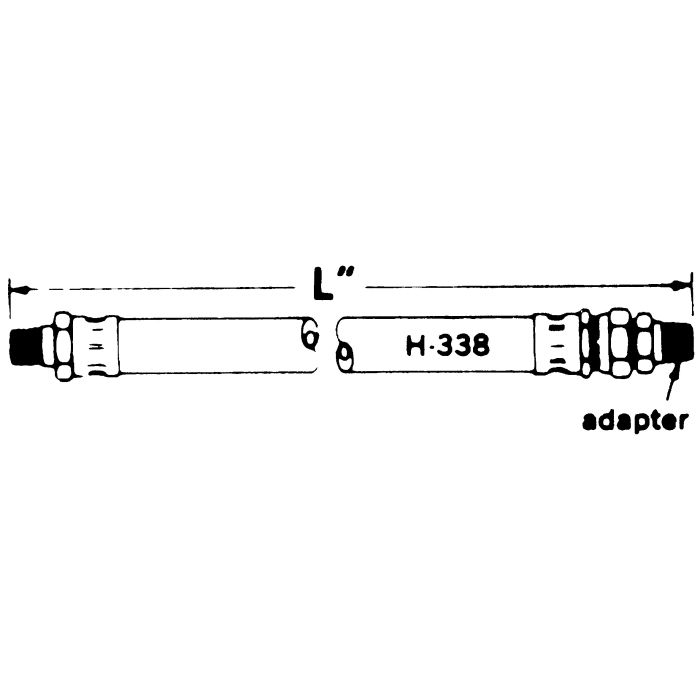

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

Ask A Question

Description & Features

This Royal Brass & Hose air brake air chamber hose assembly features a 1/4 inch male pipe connection on one end and a 1/4 inch male pipe swivel adapter on the other, connected by a 3/8 inch hose. The H338 air brake hose is constructed with a synthetic inner tube, multi-fiber spiral reinforcement, and perforated synthetic cover.

Designed for air brake air chamber hose lines, this air brake air chamber hose assembly is suitable for use in temperatures ranging from -40°F to +200°F. The H33808 hose has a 7/8 inch outside diameter, a 225 PSI working pressure, a 900 PSI burst pressure, and a 4 inch minimum bend radius. This assembly has an overall length of 41.125 inches.

SKU: W28559

Supplier Part Number (MPN): 06ABX4X42

Alternate Part Numbers: C1ER71

Specifications

Brand
Royal Brass & Hose
Brand
Royal Brass & Hose
Pack Size
1.00
UOM
EA
Hose I.D.
0.38
Includes
1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose
L
41.13
Supplier Part Number
06ABX4X42
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1ER71
Product Weight
10.00 lbs

Similar Products

Model Number Hose I.D. Includes L Price Action
Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28472 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

24.125

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28473 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

28.375

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28539 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

20.375

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28555 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

36.125

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28559 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

41.125

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86471 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

18

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86472 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

24

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86473 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

28.375

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86550 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

30

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86554 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

34.375

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86555 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

36

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86559 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

41.125

Product Questions & Answers (1)

Question by: Roger C on Jun 11, 2025, 5:03 PM
What kind of temperatures can this hose handle?
Answer by: Customer Support on Jun 13, 2025, 6:11 AM
This air brake hose assembly is made to work in temperatures from -40°F all the way up to +200°F.
