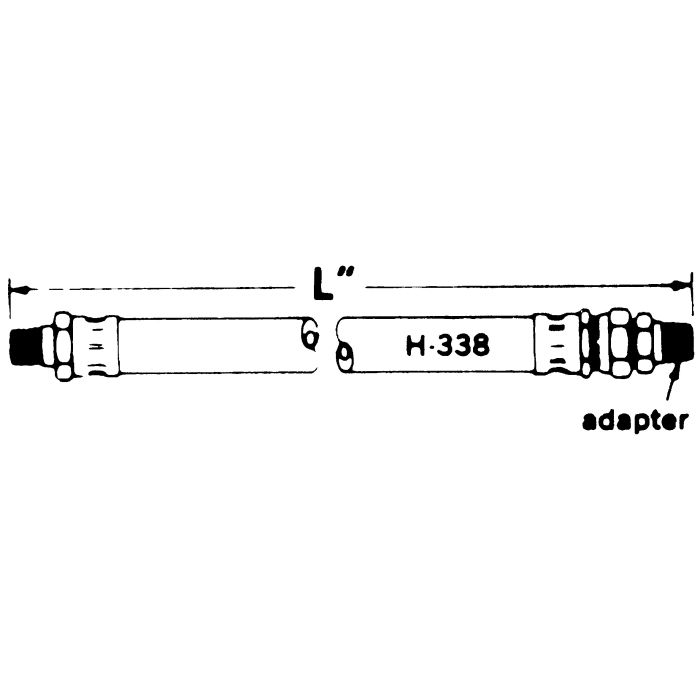

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

Ask A Question

Description & Features

Designed for air brake air chamber hose lines, this hose assembly combines Royal Brass & Hose H338 Air Brake Hose construction with a rigid 3/8 male pipe fitting on one end and a 3/8 male pipe swivel adapter on the other. The swivel end simplifies installation where fixed-end connections would cause hose twist or misalignment during assembly.

The Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose features a synthetic inner tube, multi-fiber spiral reinforcement, and a perforated synthetic outer cover. With a 1/2 inch hose I.D. and a rated working pressure of 225 PSI, with 900 PSI burst pressure, this assembly is built to handle the demands of air brake service. The operating temperature range spans -40°F to +200°F, making it suitable for a wide range of climate conditions.

SKU: W86559

Supplier Part Number (MPN): 08ABX6X42

Alternate Part Numbers: C1ER86

Specifications

Brand
Royal Brass & Hose
Brand
Royal Brass & Hose
Pack Size
1.00
UOM
EA
Hose I.D.
0.50
Includes
3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose
L
41.13
Supplier Part Number
08ABX6X42
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 08ABX6X42, Alternate Part Number C1ER86
Product Weight
0.62 lbs

Similar Products

Model Number Hose I.D. Includes L Price Action
Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28472 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

24.125

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28473 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

28.375

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28539 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

20.375

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28555 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

36.125

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

W28559 Air Brake/Chamber Hose Assembly

0.375

1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

41.125

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86471 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

18

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86472 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

24

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86473 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

28.375

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86550 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

30

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86554 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

34.375

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86555 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

36

Air Brake Air Chamber Hose Assembly, 3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

W86559 Air Brake/Chamber Hose Assembly

0.5

3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose

41.125

Product Questions & Answers (1)

Question by: Bonnie C on Feb 4, 2026, 8:11 AM
got a tight spot by the air chamber, how much can this hose bend without kinkin it
Answer by: Customer Support on Feb 5, 2026, 3:23 PM
For the 1/2 inch I.D. H338 hose used in this assembly, the minimum bend radius is 4 inches. Keeping your bend at 4 inches or larger helps prevent kinks and keeps the reinforcement from getting stressed.
