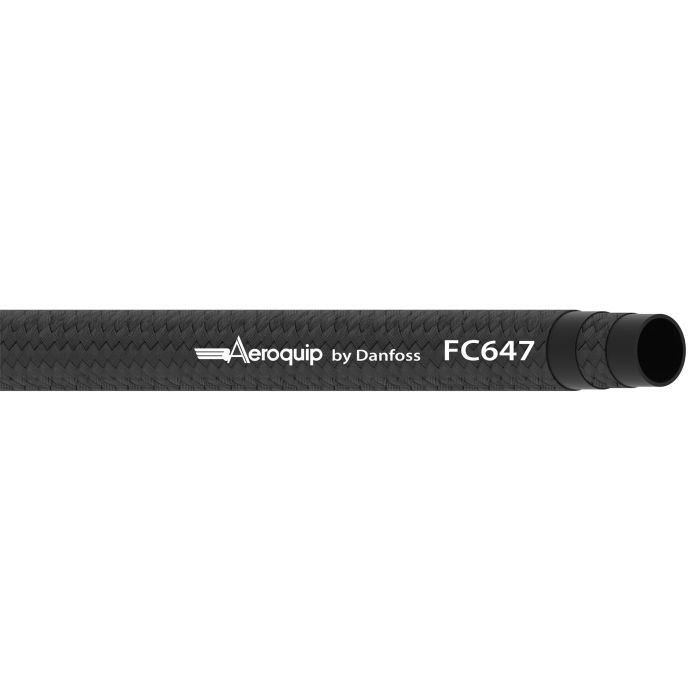

Air & Multipurpose Textile Braid Low Pressure Socketless Hose, 0.50 Inch ID, Up To 300.00 PSI

Ask A Question

Description & Features

Engineered for versatile industrial applications this hose is suitable for gasoline fuel and lubricating oils air and water. It features a synthetic rubber tube with textile braid reinforcement and a polyester braided cover ensuring durability in demanding conditions. With a maximum operating pressure of up to 300 PSI it is a reliable choice for various tasks.

The hose has a 0.50 Inch ID and a 0.79 Inch OD offering optimal flow rates. It possesses a minimum bend radius of 5 inches and vacuum service capability up to 28 inches. The temperature range is from -40F to +212F with specific limitations for water and air applications.

This product is not recommended for marine fuel lines hydraulic impulse applications or air brake systems. It is designed for industrial environments where reliable performance is crucial.

Supplier Part Number: FC647-08BLK-RL

MPN: FC647-08BLK

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.50
Hose O.D.
0.79
Maximum Operating Pressure
300
Minimum Bend Radius
5
Minimum Bend Radius
5
Reel Qty (ft)
Rolls Only
Supplier Part Number
FC647-08BLK-RL
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number C1NB32, Alternate Part Number MINO-00015F33855, Alternate Part Number MINO-00015X10887
Product Weight
0.45 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multipurpose Textile Braid Low Pressure Socketless Hose, 0.50 Inch ID, Up To 300.00 PSI

FC647-08BLK Air & Multipurpose Socketless Hose

0.5

0.79

300

5

28

Rolls Only

Air & Multipurpose Textile Braid Low Pressure Socketless Hose, 0.63 Inch ID, Up To 250.00 PSI

FC647-10BLK Air & Multipurpose Socketless Hose

0.63

0.92

250

6

18

Rolls Only

Product Questions & Answers (2)

Question by: Bobby B on Mar 15, 2026, 5:25 PM
Got a shop that runs air lines and sometimes fuel transfer too, this hose handle both without needing two different setups?
Answer by: Customer Support on Mar 17, 2026, 11:24 AM
For general industrial use, yes it handles both. The hose is rated for air, gasoline, lubricating oils, and water, so running it across different tasks in a shop environment is exactly what it's built for. One thing worth knowing upfront: it is not approved for marine fuel line use, hydraulic impulse applications, or air brake systems, so keep it out of those roles. Within those boundaries though, it's a solid all-around choice for mixed-use shop setups.
Question by: Darryl D on Sep 5, 2025, 7:52 PM
got a half inch line for shop air, will this hose handle it without kinking up too easy?
Answer by: Customer Support on Sep 7, 2025, 7:22 AM
For shop air use, it’s rated up to 300 PSI and it’ll flex down to a 5 inch minimum bend radius. If you keep your routing at or above that bend radius, it’s much less likely to kink when you turn corners or move equipment around.
