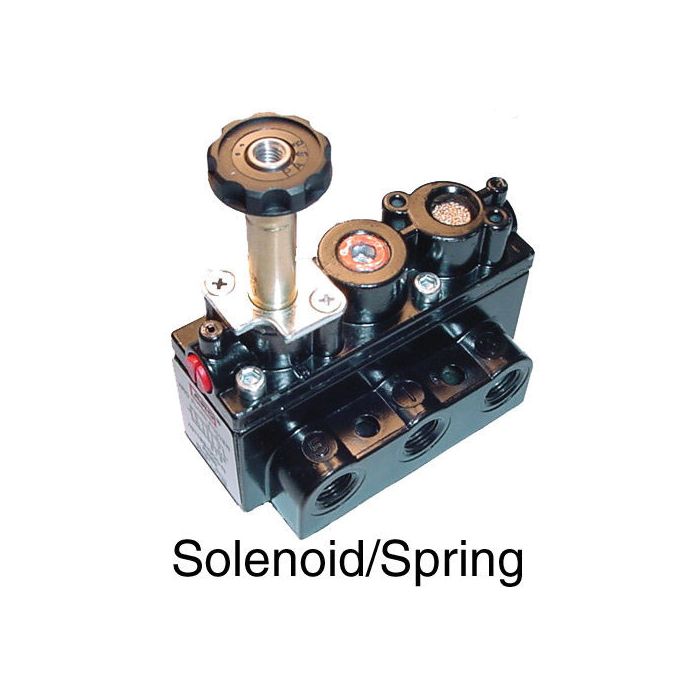

Alpha Series Solenoid Operated Pneumatic Valve, 4-way 2-position, Spring Return, 1/4 NPT (Side) Ports, 50 Flow Rating

Description & Features

The compact design of this valve ensures efficient space utilization, while the ISO identification on ports aids in reliable installation. Operating within a pressure range from vacuum to 150 PSI, the valve offers a high cycle rate of 600 cycles per minute, making it suitable for stand-alone or remote applications.

Constructed with a zinc body and urethane/Vitonreg; bonded precision ground spools, it guarantees durability and prolonged service life. The 1/4 NPT (side) ports and high flow capability (50 SCFM) are based on 100 PSIG input and 85 PSIG output.

This directional solenoid operated valve features a 4-way 2-position spool action with a spring return mechanism and requires a minimum shift pressure of 50 PSI for single solenoid or 20 PSI for double solenoid application. The valve does not necessitate lubrication and is optimized for fast signal response times (20ms Double Solenoid, 22ms Single Solenoid Energize, 27ms Single Solenoid De-energize).

For enhanced versatility, optional external solenoid supply plug kits are available, facilitating use in vacuum and low-pressure applications.

Recommended filtration for the valve is 40 microns, with an operational temperature range spanning from 0deg;F to 180deg;F.

MPN: C1CH15

Supplier Part Number: A212SS-000-N

Specifications

Brand ARO®	Actuator Type Spring	Body Material Zinc	Coil Without Coil	Connection Type NPT	Grp Application For stand alone or remote valve applications. Optional external solenoid supply plug kit (119306) allows valve to be used in vacuum and low pressure applications (Contact us for details)	grp Coil Coils are UL Listed and Comply with CSA Standards, Ac and Dc Coils are Interchangeable on the Same Solenoid Stem, UL File #MH13513, CSA File #lr51090, Class F Coils are Rated for 100% Duty Cycle, Coil Connectors Meet Nema 4 Classification	grp Materials Urethane and FKM Bonded Precision Ground Spools	grp Minimum Shift Pressure Single Solenoid: 50 psi, Double Solenoid: 20 psi	grp Recommended Filtration 40 um	Nominal Size 1/4 in	Number of Ports/Ways 4	Number of Positions 2	Port Connection NPT	Port Type Side	Series Alpha™ Series	Spool Material Urethane

Similar Products

Model Number	Valve Type	Spool Action	Ports	Flow Rating (SCFM)	CV Factor	Spool Material	Coil	Price	Action
A212SD-000-N Alpha Series Pneumatic Valve	4-way 2-position	Solenoid Return	1/4 NPT (Side)	50	1.5000	Urethane	Not Included

Product Questions & Answers (5)

Question by: Harvey A on Aug 21, 2025, 6:16 AM

What kind of flow rating does this valve have?

Answer by: Customer Support on Aug 22, 2025, 10:58 AM

This valve is rated for a 50 SCFM flow rating, based on a 100 PSIG input and 85 PSIG output.

Question by: Billy L on Jul 14, 2025, 6:42 PM

runs about 600 cycles a minute sound right for this valve? trying to figure out if it'll keep up on a pretty fast automated line

Answer by: Customer Support on Jul 16, 2025, 6:26 AM

Yeah, 600 cycles per minute is exactly what this valve is rated for, so it should hold its own on a high-speed line. Response time comes in at 22ms when energized and 27ms on de-energize for the single solenoid setup, which is quick enough for most automated applications running at that pace. Just make sure your supply pressure stays in range and your air is filtered to 40 micron or better, and you won't be leaving any performance on the table.

Question by: Donna B on Feb 7, 2026, 9:37 PM

trying to run this valve on a vacuum setup, is that even in its range?

Answer by: Customer Support on Feb 9, 2026, 7:08 AM

For operating limits, it is rated to work from vacuum up to 150 PSI. There is also an optional external solenoid supply plug kit (119306) that allows the valve to be used in vacuum and low pressure applications.

Question by: Rhonda M on Nov 18, 2025, 10:12 AM

trying to tuck this valve in a tight spot, are the ports on the side and are they 1/4 npt?

Answer by: Customer Support on Nov 19, 2025, 12:59 PM

For mounting in cramped panels or small manifolds, it uses 1/4 NPT ports located on the side, and the ports have ISO identification to help keep the connections straight during install.

Question by: Todd B on Oct 25, 2025, 7:49 AM

Can this valve handle dirty air, or do I need to run a filter?

Answer by: Customer Support on Oct 27, 2025, 7:46 AM

A 40-micron filter is recommended to keep this valve running smoothly.
