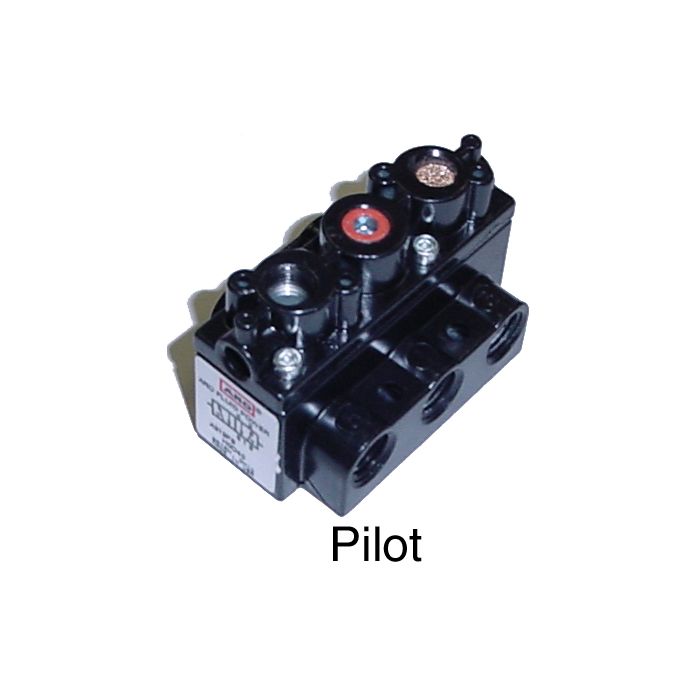

Alpha Series Pilot-Operated Pneumatic Valves, Up To 61 SCFM

Specifications
Flow RatingBased on 100 PSIG input and 85 PSIG output.
ApplicationFor stand alone or remote valve applications.
LubricationNot required.
MaterialsZinc body. Urethane and Viton® bonded precision ground spools.
FeaturesCompact space saving design. Ports have ISO identification. Large air passages result in high flow capability. Fast signal response times (14ms Double Pilot, 19ms Single Pilot On, 26ms Single Pilot Off).
Operating Pressure RangeVacuum to 150 PSI.
Temperature Range0°F to 180°F.
