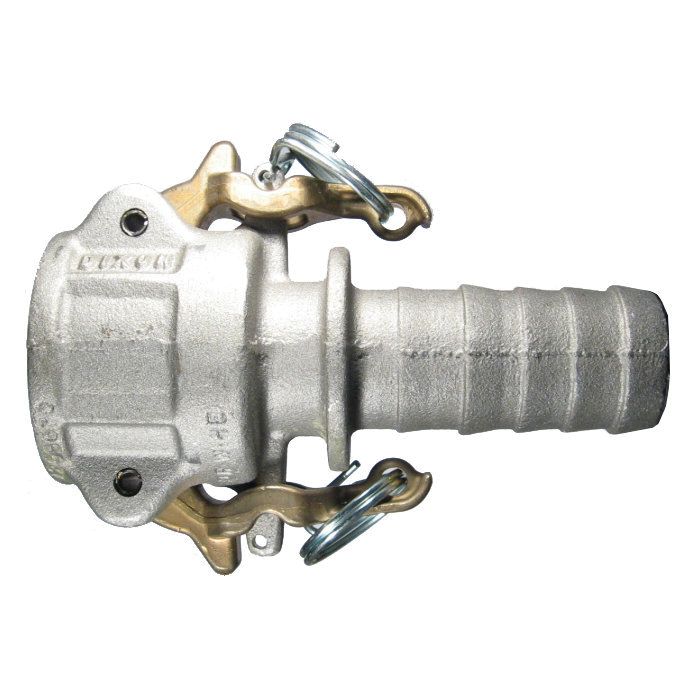

Aluminum Cam & Groove Coupler, Female Half, 3/4 Inch ID Hose Barb

Description & Features

Designed for liquid applications the CAN Industrial Inc Aluminum Cam & Groove Barb Coupler ALC-075 ensures optimal performance under rigorous conditions. Featuring a robust body constructed from Aluminum A356 or A104 and durable cam levers made from brass this coupler provides consistent reliability. The coupling mechanism comprises plated steel pins rings and safety clips to prevent corrosion. The Buna-N seals offer excellent chemical and oil resistance maintaining the coupler's operational integrity. The built-in safety pin feature prevents accidental disassembly by securing connections during use offering an added layer of safety. Complying with the standard A-A-59326 or DIN 2828 this product ensures compatibility with other standard couplers excluding sizes 1/2 and 8. Pressure ratings stand at 150 PSI for sizes 1/2 - 4 and 75 PSI for sizes 5 to 8 making it suitable for various industrial applications. The coupling and uncoupling processes are user-friendly: slide the adapter into the coupler press the cam levers down and lift the cam arms to disengage the adapter. **Supplier Part Number:** ALC-075

Specifications

Brand Sunrise	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features
ALC-100 Aluminum Cam & Groove Barb Coupler	1	Safety Clip
ALC-150 Aluminum Cam & Groove Barb Coupler	1-1/2	Safety Clip
ALC-200 Aluminum Cam & Groove Barb Coupler	2	Safety Clip
ALC-300 Aluminum Cam & Groove Barb Coupler	3	Safety Clip
ALC-400 Aluminum Cam & Groove Barb Coupler	4	Safety Clip
ALC-600 Aluminum Cam & Groove Barb Coupler	6	Safety Clip
ALC-125 Aluminum Cam & Groove Barb Coupler	1-1/4	Safety Clip
ALC-250 Aluminum Cam & Groove Barb Coupler	2-1/2	Safety Clip

Product Questions & Answers (3)

Question by: Hubert J on Jan 13, 2026, 6:14 PM

got a 3/4 hose with a barb end, is this the female cam lock half for that or am i lookin at the wrong piece

Answer by: Customer Support on Jan 15, 2026, 6:11 AM

For a 3/4 inch ID hose, this part is the female cam and groove coupler with a 3/4 inch hose barb (hose shank). It is the female half that mates to a cam and groove adapter, and it’s made to interchange with standard A-A-59326 or DIN 2828 couplers in the standard sizes.

Question by: Dean S on Nov 13, 2025, 9:35 AM

Got a line running liquid transfer on the farm and need something that'll lock up tight without comin loose on its own, does this coupler have any kind of safety feature to keep it from disconnecting accidentally?

Answer by: Customer Support on Nov 15, 2025, 8:12 AM

Female cam and groove couplers in this line have cast-in lugs built into the body. Once the adapter is seated and the cam levers are pressed down, you can run a safety pin through those lugs and the slots in the cam lever arms. Until that pin is pulled, the coupler won't release. It's a real practical feature when you've got lines under pressure and don't want a bump or snag pulling things apart on you.

Question by: Lee R on Jan 10, 2026, 10:47 AM

Is this coupler okay to use with, say, a chemical transfer setup?

Answer by: Customer Support on Jan 12, 2026, 8:03 AM

Designed for liquid applications, this coupler features Buna-N seals that offer good resistance to chemicals and oil, which should make it suitable for chemical transfer, but always check compatibility with the specific chemical.
