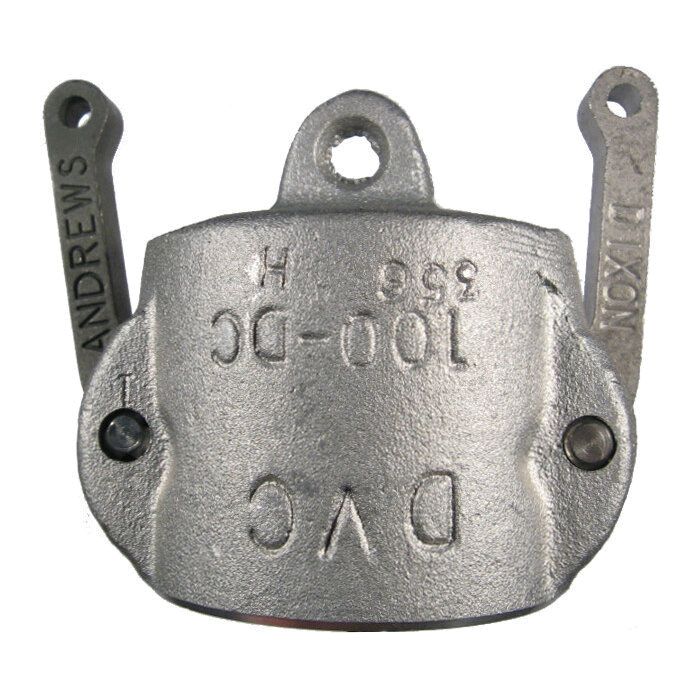

Aluminum Cam & Groove Adapter, 2 Inch Dust Cap

Description & Features

Crafted from high-grade Aluminum A356 or A104 the Aluminum Cam & Groove Adapter 2 Inch Dust Cap is engineered for optimal use with liquids. It features brass cam levers plated steel pins rings and safety clips to ensure durability.

The adapter is designed for seamless coupling by sliding into the coupler and pressing down the cam levers with standard hand pressure. The uncoupling process is just as straightforward requiring the lifting of the cam arms to remove the adapter. The safety pin feature prevents accidental uncoupling providing an additional layer of security.

Sealed with Buna-N material this dust cap ensures leak-free performance. It adheres to the A-A-59326 standard guaranteeing interchangeability with similar products. Specifically the 2-inch size can handle pressure ratings of up to 150 PSI.

**Supplier Part Number:** ALDC-200

Specifications

Brand Sunrise	Connection Size 1 2 in	Connection Type Type DC	Connection Type 1 Type DC	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Cap	Material Aluminum	Material Construction A104/A356 Aluminum	Seal Material Buna-N	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features	Seal Material
AH-400 Aluminum Cam & Groove Cap	4	Safety Clip	Buna-N
ALDC-075 Aluminum Cam & Groove Cap	3/4	Safety Clip	Buna-N
ALDC-100 Aluminum Cam & Groove Cap	1	Safety Clip	Buna-N
ALDC-150 Aluminum Cam & Groove Cap	1-1/2	Safety Clip	Buna-N
ALDC-250 Aluminum Cam & Groove Cap	2-1/2	Safety Clip	Buna-N
ALDC-300 Aluminum Cam & Groove Cap	3	Safety Clip	Buna-N
ALDC-400 Aluminum Cam & Groove Cap	4	Safety Clip	Buna-N

Product Questions & Answers (3)

Question by: Melvin H on Jan 7, 2026, 5:49 PM

i need a 2 inch cam lock dust cap for a liquid line. is this the one with the safety clip setup?

Answer by: Customer Support on Jan 9, 2026, 6:34 AM

Safety clip hardware is part of this dust cap assembly. The body is aluminum (A356 or A104), and the pins, rings, and safety clips are plated steel, with brass cam levers.

Question by: Daryl G on Oct 11, 2025, 6:54 PM

Will this dust cap keep stuff out of my cam lock when I'm not using it? Like, dirt and whatnot?

Answer by: Customer Support on Oct 13, 2025, 2:46 PM

It definitely will. This 2-inch dust cap is designed to keep liquids and other contaminants out of your cam and groove adapter when it's not in use, thanks to the Buna-N seal that ensures a leak-free fit.

Question by: Billy W on Dec 24, 2025, 3:25 PM

safety pins on these cam locks, how exactly do they work? trying to figure out if this'll hold up on a line where accidental disconnects could be a real problem

Answer by: Customer Support on Dec 26, 2025, 2:34 PM

Female couplers built to this standard have cast-in lugs that let you slide a safety pin through once the adapter is seated. The pin physically blocks the cam lever arms from lifting, so the coupling can't be released until someone deliberately pulls that pin out. It's a mechanical lock, not just friction or tension, which makes it solid for lines where an unintended disconnect would cause a headache or a hazard.
