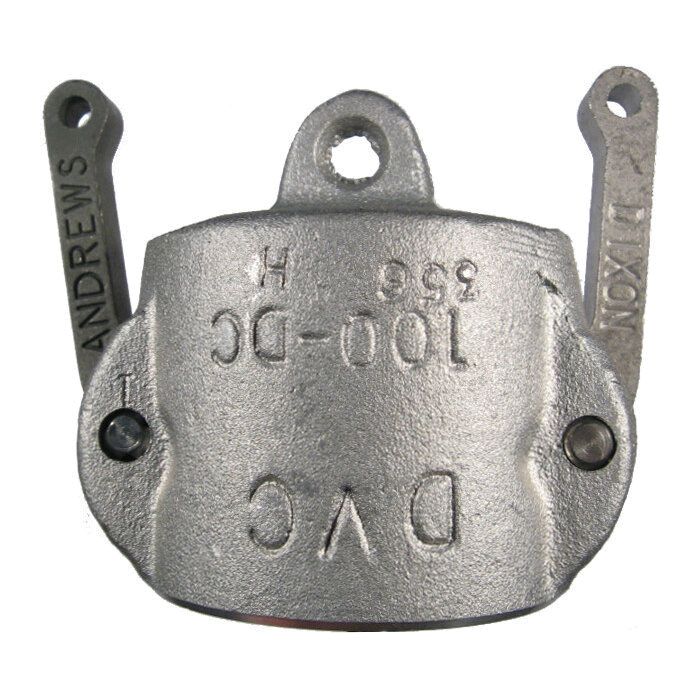

Aluminum Cam & Groove Adapter, 4 Inch Dust Cap

Description & Features

The Aluminum Cam & Groove Adapter 4 Inch Dust Cap is meticulously designed to handle liquid transfer applications efficiently. Constructed from premium Aluminum A356 or A104 materials it promises exceptional durability and reliability in demanding environments.

The cam levers of this adapter are made from sturdy brass while the pins rings and safety clips are crafted from plated steel ensuring a robust connection. The seal made from Buna-N offers superior resistance to various chemicals and temperatures enhancing the product's versatility.

Featuring a safety clip this adapter minimizes the risk of accidental disconnection ensuring secure operations. It is important to note that this product should never be used with compressed air or steam service.

Interchangeable with all products produced to standard A-A-59326 (superseding MIL-C-27487F) or DIN 2828 this adapter offers a versatile solution for various industrial needs. The pressure ratings for sizes 1/2 to 4 is 150 PSI and for sizes 5 to 8 is 75 PSI.

Supplier Part Number: ALDC-400

Specifications

Brand Sunrise	Connection Size 1 4 mm	Connection Type Type DC	Connection Type 1 Type DC	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Cap	Material Aluminum	Material Construction A104/A356 Aluminum	Seal Material Buna-N	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features	Seal Material
AH-400 Aluminum Cam & Groove Cap	4	Safety Clip	Buna-N
ALDC-075 Aluminum Cam & Groove Cap	3/4	Safety Clip	Buna-N
ALDC-100 Aluminum Cam & Groove Cap	1	Safety Clip	Buna-N
ALDC-150 Aluminum Cam & Groove Cap	1-1/2	Safety Clip	Buna-N
ALDC-200 Aluminum Cam & Groove Cap	2	Safety Clip	Buna-N
ALDC-250 Aluminum Cam & Groove Cap	2-1/2	Safety Clip	Buna-N
ALDC-300 Aluminum Cam & Groove Cap	3	Safety Clip	Buna-N

Product Questions & Answers (1)

Question by: Tony B on Nov 16, 2025, 1:31 PM

Reckon this dust cap will fit my existing cam and groove fittings?

Answer by: Customer Support on Nov 18, 2025, 6:26 AM

It's designed to interchange with all products made to A-A-59326 (superseding MIL-C-27487F) or DIN 2828 standards, so it should fit right up. Just note that the standard doesn't really apply to 1/2" or 8" sizes.
