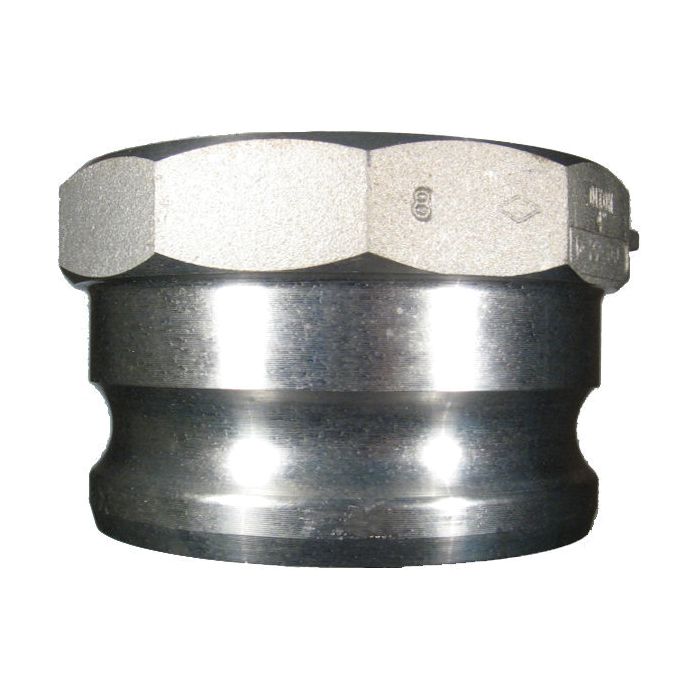

Aluminum Cam & Groove Adapter, Male Half, Inch Female NPT

Description & Features

Manufactured by Sunrise Hose the Aluminum Cam & Groove Adapter Male Half Inch Female NPT is pivotal for fluid handling applications. Constructed from Aluminum A356 or A104 for durability the cam levers are brass and the pins rings and safety clips are plated steel. The Buna-N seals ensure reliable operation.

Designed specifically for use with liquids this adapter connects efficiently via a simple hand-press mechanism. To couple slide the adapter into the coupler and press the cam levers down. Uncoupling is performed by lifting the cam arms and removing the adapter.

For added safety female couplers feature cast-in lugs compatible with safety pins which prevent uncoupling until pins are removed. Interchangeable with products conforming to A-A-59326 or DIN 2828 standards it ensures compatibility across systems.

Pressure ratings include 150 PSI for sizes 1/2 - 4 and 75 PSI for sizes 5 - 8. Note that these fittings should not be used with compressed air or steam.

Supplier Part Number: ALA-075

MPN: C1LX81

Specifications

Brand Sunrise	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male Adapter, FNPT	Connection Type 1 Male Adapter	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Price	Action
ALA-200 Aluminum Cam & Groove NPT Adapter
ALA-300 Aluminum Cam & Groove NPT Adapter
ALA-400 Aluminum Cam & Groove NPT Adapter
ALA-100 Aluminum Cam & Groove NPT Adapter
ALA-125 Aluminum Cam & Groove NPT Adapter
ALA-150 Aluminum Cam & Groove NPT Adapter
ALA-250 Aluminum Cam & Groove NPT Adapter
ALA-600 Aluminum Cam & Groove NPT Adapter

Product Questions & Answers (2)

Question by: Floyd R on Oct 11, 2025, 3:30 PM

got a 3/4" female NPT port on my line. is this the right camlock piece to screw in and still have the male cam side?

Answer by: Customer Support on Oct 12, 2025, 8:41 PM

For a 3/4 inch female NPT connection, this is the adapter style that threads in with a 3/4 inch female NPT end and gives you the male cam and groove half on the other side.

Question by: Troy E on Dec 21, 2025, 3:39 PM

these cam lock fittings safe to run on an air compressor setup? got a few lines I'm trying to tie together and wondering if this'd work

Answer by: Customer Support on Dec 22, 2025, 5:59 PM

Compressed air is actually one of the specific uses these fittings are not rated for. Same goes for steam. They're built for liquid service only, so running them on an air line would be outside what they're designed to handle. For liquid transfer though, they work well up to 150 PSI on the 1/2 inch through 4 inch sizes.
