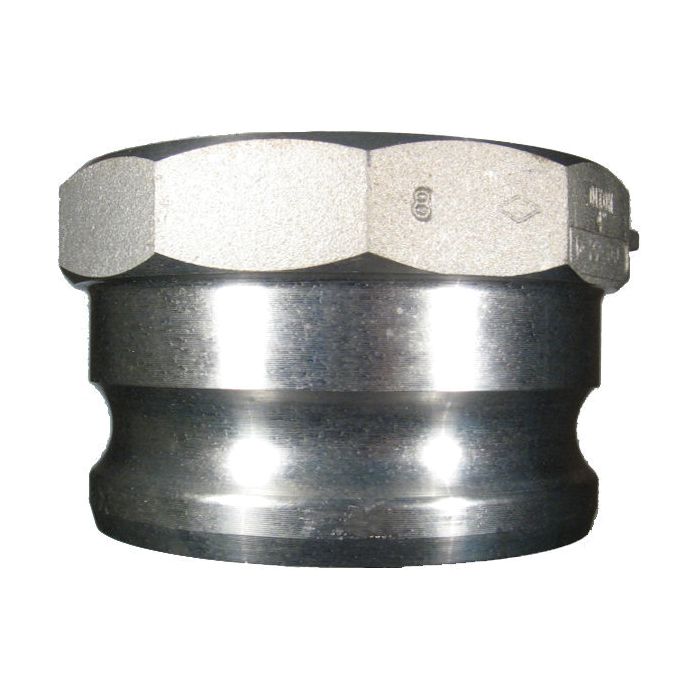

Aluminum Cam & Groove Adapter, Male Half, Inch Female NPT

Description & Features

The Aluminum Cam & Groove Adapter Male Half 1 Inch Female NPT is a durable and efficient coupling solution designed for liquid applications. Manufactured by Sunrise Hose under the brand CAN Industrial Inc this high-quality adapter features a body made from Aluminum A356 or A104 with brass cam levers and plated steel pins rings and safety clips. The Buna-N seals ensure a reliable and secure connection.

With an interchangeability standard of A-A-59326 and pressure ratings of 150 PSI for sizes 1/2 - 4 and 75 PSI for sizes 5 to 8 this adapter offers robust performance. The coupling process is straightforward: slide the adapter into the coupler and press down the cam levers with hand pressure for coupling and lift the cam arms for uncoupling.

Note that it is not suitable for compressed air or steam service. This adapter is compatible with fittings listed in the hose section of the catalog and features cast-in lugs for safety pins to prevent accidental uncoupling.

Supplier Part Number: ALA-100

Specifications

Brand Sunrise	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male Adapter, FNPT	Connection Type 1 Male Adapter	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Price	Action
ALA-200 Aluminum Cam & Groove NPT Adapter
ALA-300 Aluminum Cam & Groove NPT Adapter
ALA-400 Aluminum Cam & Groove NPT Adapter
ALA-075 Aluminum Cam & Groove NPT Adapter
ALA-125 Aluminum Cam & Groove NPT Adapter
ALA-150 Aluminum Cam & Groove NPT Adapter
ALA-250 Aluminum Cam & Groove NPT Adapter
ALA-600 Aluminum Cam & Groove NPT Adapter

Product Questions & Answers (1)

Question by: Stan P on Mar 17, 2026, 4:15 PM

Been using cam lock fittings for years and always had to double-check on compressed air setups. This one alright for that kind of service?

Answer by: Customer Support on Mar 19, 2026, 12:38 PM

Cam and groove couplings of this type are not rated for compressed air or steam under any circumstances. Liquid service only. If you're running a pneumatic line, you'd need a different style of coupling altogether. That's a hard limitation, not just a caution.
