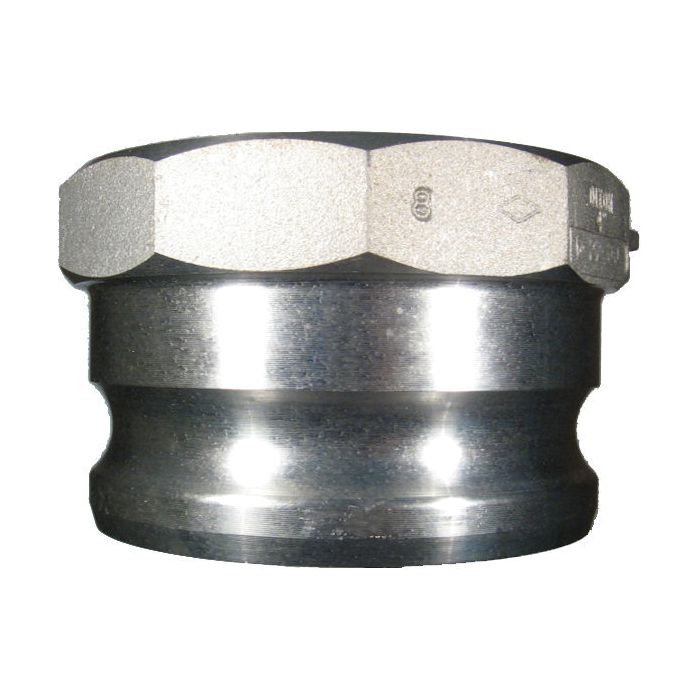

Aluminum Cam & Groove Adapter, Male Half, Inch Female NPT

Description & Features

The Aluminum Cam & Groove Adapter Male Half Inch Female NPT provided by Can Industrial Inc is expertly crafted for fluid-related applications. With body material consisting of Aluminum A356 or A104 it ensures robust performance and durability. The cam levers made from brass and pins rings and safety clips constructed of plated steel offer reliable engagement and secure operations.

Designed specifically for liquid transfer its coupling mechanism is straightforward: slide the adapter into the coupler and press the cam levers down with normal hand pressure. Uncoupling is equally simple by lifting the cam arms and removing the adapter. It features interchangeable capabilities with products adhering to standard A-A-59326 (superseding MIL-C-27487F) or DIN 2828.

Safety is prioritized with built-in lugs for attaching safety pins on female couplers ensuring the adapter remains coupled during use until the pins are removed. It operates under pressure ratings of 150 PSI for sizes 1/2 4 and 75 PSI for sizes 5 to 8. Note that it should not be used with compressed air or steam services under any circumstances.

MPN: C1LX84

Supplier Part Number: ALA-150

Specifications

Brand Sunrise	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Male Adapter, FNPT	Connection Type 1 Male Adapter	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Price	Action
ALA-200 Aluminum Cam & Groove NPT Adapter
ALA-300 Aluminum Cam & Groove NPT Adapter
ALA-400 Aluminum Cam & Groove NPT Adapter
ALA-075 Aluminum Cam & Groove NPT Adapter
ALA-100 Aluminum Cam & Groove NPT Adapter
ALA-125 Aluminum Cam & Groove NPT Adapter
ALA-250 Aluminum Cam & Groove NPT Adapter
ALA-600 Aluminum Cam & Groove NPT Adapter

Product Questions & Answers (3)

Question by: Clint C on Oct 6, 2025, 1:19 PM

got a 1-1/2 camlock setup for liquids, is this the piece that slides into the coupler and you flip the arms down?

Answer by: Customer Support on Oct 8, 2025, 6:23 AM

To couple it, you slide the male adapter into the female coupler and press the cam levers down with normal hand pressure. To uncouple, lift the cam arms and pull the adapter back out.

Question by: Cody H on Jun 14, 2025, 10:50 AM

So this adapter, it threads onto a female NPT pipe, right? Just making sure I'm picturing it right before I order.

Answer by: Customer Support on Jun 15, 2025, 8:43 PM

That's correct. This adapter features male cam and groove on one side and female NPT threads on the other, allowing you to connect a cam and groove fitting to a standard female NPT pipe thread.

Question by: Jimmy H on Jan 10, 2026, 4:24 PM

these cam and groove fittings – are they safe to hook up to an air compressor line, or is that a no-go?

Answer by: Customer Support on Jan 12, 2026, 6:29 AM

Air service is not an option with these. Cam and groove couplings like this one are strictly for liquid transfer. Using them on compressed air lines is a known safety hazard and goes against the product's rated application. Same goes for steam. If you've got an air line that needs a quick-connect solution, you'd want to look at fittings built specifically for pneumatic service.
