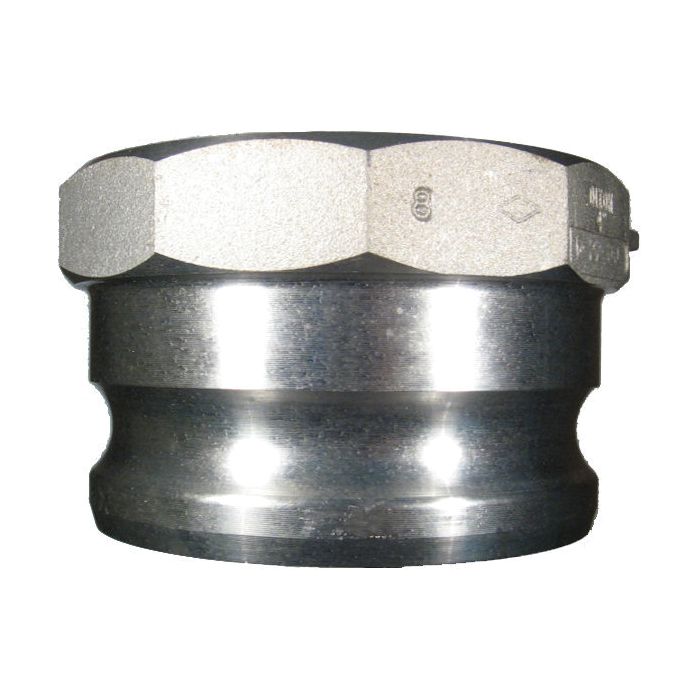

Aluminum Cam & Groove Adapter, Male Half, Inch Female NPT

Description & Features

This aluminum cam & groove adapter, male half, inch female NPT is expertly engineered for liquid applications. The device features a robust aluminum A356 or A104 body material, ensuring durability and reliability in demanding industrial environments. Brass cam levers, along with plated steel pins, rings, and safety clips, contribute to its long-lasting performance.

The coupling and uncoupling process is designed for simplicity and efficiency. To couple, slide the adapter into the coupler and press the cam levers down with normal hand pressure. For uncoupling, lift the cam arms and remove the adapter. The safety pin feature on female couplers prevents accidental disconnection, guaranteeing secure operations.

Interchangeability is assured with all products made to the standard A-A-59326 (superseding MIL-C-27487F) or DIN 2828 standards, except for the non-standard 1/2rdquo; and 8rdquo; sizes. The adapter supports pressure ratings of 150 PSI for sizes 1/2rdquo; to 4rdquo; and 75 PSI for 5rdquo; to 8rdquo;.

Supplier Part Number: ALA-200

Specifications

Brand CAN Industrial Inc	Brand CAN Industrial	Pack Size 1.00	UOM EA	Mfg. Name Sunrise Hose	Supplier Part Number ALA-200	Alternate Part Numbers Alternate Part Number C1LX85, Alternate Part Number MI-00342599, Alternate Part Number MINO-00501F80868	Product Weight 0.28 lbs

Similar Products

Model Number	Size	Price	Action
ALA-200 Aluminum Cam & Groove NPT Adapter
ALA-300 Aluminum Cam & Groove NPT Adapter
ALA-400 Aluminum Cam & Groove NPT Adapter
ALA-075 Aluminum Cam & Groove NPT Adapter
ALA-100 Aluminum Cam & Groove NPT Adapter
ALA-125 Aluminum Cam & Groove NPT Adapter
ALA-150 Aluminum Cam & Groove NPT Adapter
ALA-250 Aluminum Cam & Groove NPT Adapter
ALA-600 Aluminum Cam & Groove NPT Adapter

Product Questions & Answers (6)

Question by: Kurt W on Nov 1, 2025, 8:28 PM

what's the pressure rating on this 2 inch cam lock? got a liquid transfer application running around 120 psi and just want to make sure it'll hold up

Answer by: Customer Support on Nov 3, 2025, 5:11 PM

For 1/2 inch through 4 inch sizes, these aluminum cam and groove fittings are rated at 150 PSI. A 2 inch adapter running at 120 PSI falls well within that range, so you're in good shape for that application. Just keep in mind these are rated for liquid service only. Compressed air and steam are not suitable uses, no exceptions.

Question by: Scott S on Jan 10, 2026, 8:53 PM

Hey, I'm trying to hook up some hoses. Is this thing gonna fit with any standard cam lock stuff?

Answer by: Customer Support on Jan 12, 2026, 6:48 AM

Interchangeability is one of the key features. It works with any product made to A-A-59326 or DIN 2828 standards. Just so you know, the 1/2" and 8" sizes might not always play nice with other brands.

Question by: Kirk R on Mar 19, 2026, 8:25 AM

Got a 2 inch cam lock coupler already, will this male adapter swap in and still interchange with the standard cam and groove stuff?

Answer by: Customer Support on Mar 21, 2026, 6:17 AM

For interchange, it is built to the A-A-59326 standard (which supersedes MIL-C-27487F) and also aligns with DIN 2828, so it is meant to mate with other cam and groove components made to those same standards.

Question by: Roy W on Mar 24, 2025, 8:49 AM

i got a 2 inch cam lock setup already. is this the male half with female npt threads on the other end?

Answer by: Customer Support on Mar 26, 2025, 6:07 AM

Function-wise, it is a male cam and groove adapter that slides into a cam and groove coupler, and the threaded end is a 2 inch female NPT connection.

Question by: Cody H on Oct 15, 2025, 9:37 AM

What kind of liquids can I use this with?

Answer by: Customer Support on Oct 17, 2025, 6:13 AM

These adapters are designed for liquid applications. For specific recommendations, it's best to give us a call, so we can make sure you get exactly what you need for the job.

Question by: Ross C on May 22, 2025, 8:43 PM

is this fitting safe to run with compressed air lines? got a setup where we swap between water and air pretty regular

Answer by: Customer Support on May 24, 2025, 9:19 AM

Cam and groove couplings like this one are rated for liquid service only. Using them on compressed air lines is not allowed under any circumstances, and the same goes for steam. If your system alternates between water and air, you'd want a different coupling type for the air side.
