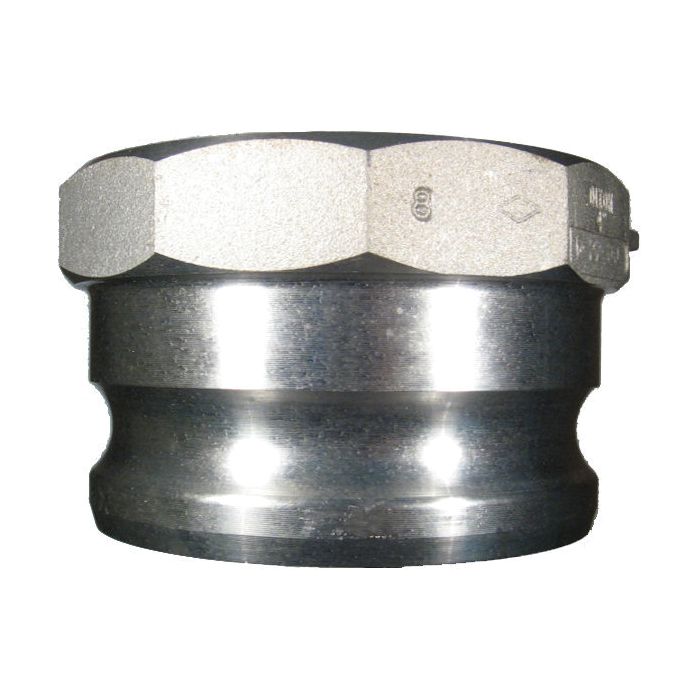

Aluminum Cam & Groove Adapter, Male Half, Inch Female NPT

Description & Features

The Aluminum Cam & Groove Adapter Male Half Inch Female NPT offers superior reliability for industrial applications involving liquid transfer. With a body crafted from durable aluminum A356 or A104 brass cam levers and plated steel pins rings and safety clips it ensures robust performance under varying conditions.

This coupling easily interchanges with other products meeting the A-A-59326 (superseding MIL-C-27487F) or DIN 2828 standards. It features a user-friendly design for quick coupling and uncoupling with minimal effort. The integrated safety pin feature prevents accidental disconnection by securing the cam levers in place.

Designed for liquid use the adapter boasts pressure ratings of 150 PSI for sizes 1/2 - 4 and 75 PSI for 5 to 8 sizes. Notably these cam and groove adapters should not be used with compressed air or steam to avoid hazardous outcomes.

Material Specifications: Body - Aluminum A356 or A104; Cam levers - Brass; Pins Rings Safety clips - Plated Steel; Seals - Buna-N.

MPN: C1LX89

Supplier Part Number: ALA-600

Specifications

Brand Sunrise	Connection Size 1 6 mm	Connection Size 2 6 mm	Connection Type Male Adapter, FNPT	Connection Type 1 Male Adapter	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Aluminum	Material Construction A104/A356 Aluminum	Maximum Operating Pressure 75 psi	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Price	Action
ALA-200 Aluminum Cam & Groove NPT Adapter
ALA-300 Aluminum Cam & Groove NPT Adapter
ALA-400 Aluminum Cam & Groove NPT Adapter
ALA-075 Aluminum Cam & Groove NPT Adapter
ALA-100 Aluminum Cam & Groove NPT Adapter
ALA-125 Aluminum Cam & Groove NPT Adapter
ALA-150 Aluminum Cam & Groove NPT Adapter
ALA-250 Aluminum Cam & Groove NPT Adapter

Product Questions & Answers (1)

Question by: Harold P on Jun 25, 2025, 10:22 AM

Hey, will this thing actually lock so it don't pop open on me?

Answer by: Customer Support on Jun 26, 2025, 4:52 PM

The female couplers on these have cast-in lugs for safety pins. That way, once you put the pin in, the coupler can't be opened until you take it back out. Keeps things secure.
