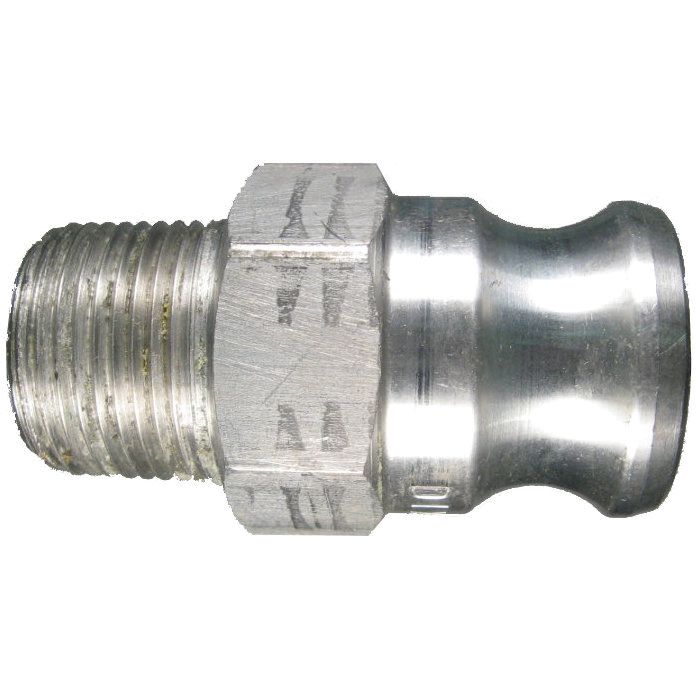

Aluminum Cam & Groove Adapter, Male Half, 2-1/2 Inch Male NPT

Description & Features

The Aluminum Cam & Groove Adapter Male Half 2-1/2 Inch Male NPT is an essential component for managing liquid transfer processes. Designed under the CAN Industrial Inc brand this adapter features robust construction with a body material of Aluminum A356 or A104 brass cam levers and plated steel pins rings and safety clips.

Its operation is straightforward: slide the adapter into the coupler and press the cam levers down with normal hand pressure to couple. To uncouple lift the cam arms and remove the adapter. This adapter is not intended for use with compressed air or steam service.

Safety is a top priority with the inclusion of a safety pin feature on female couplers which prevents accidental uncoupling. This product interchanges with other products adhering to standard A-A-59326 or DIN 2828 and is recommended for liquid applications.

MPN: Aluminum

Supplier Part Number: ALF-250

Specifications

Brand Sunrise	Connection Size 1 2-1/2 in	Connection Size 2 2-1/2 in	Connection Type Male Adapter, MNPT	Connection Type 1 Male Adapter	Connection Type 2 Male NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Price	Action
ALF-075 Aluminum Cam & Groove NPT Adapter	3/4
ALF-100 Aluminum Cam & Groove NPT Adapter	1
ALF-125 Aluminum Cam & Groove NPT Adapter	1-1/4
ALF-150 Aluminum Cam & Groove NPT Adapter	1-1/2
ALF-200 Aluminum Cam & Groove NPT Adapter	2
ALF-300 Aluminum Cam & Groove NPT Adapter	3
ALF-400 Aluminum Cam & Groove NPT Adapter	4
ALF-600 Aluminum Cam & Groove NPT Adapter	6

Product Questions & Answers (2)

Question by: Patty T on Dec 30, 2025, 9:10 PM

trying to swap out an old camlock, is this one the male half with 2-1/2" male NPT threads?

Answer by: Customer Support on Jan 1, 2026, 6:38 AM

Youre looking at a male cam and groove adapter with 2-1/2 inch male NPT pipe threads. It mates by sliding into a compatible cam and groove coupler and locking down the cam levers by hand.

Question by: Debbie R on Jul 23, 2025, 4:54 PM

figured i'd ask before ordering -- will this adapter work with a standard cam and groove coupler from a different brand, or is it proprietary to one system?

Answer by: Customer Support on Jul 24, 2025, 9:46 PM

Cam and groove fittings made to standard A-A-59326 or DIN 2828 are interchangeable across manufacturers, so this adapter should mate up with any coupler built to those same standards. The one exception worth knowing is the half-inch and eight-inch sizes, which have no formal standard and often don't play nice between brands. At two-and-a-half inch, you're in the range where interchangeability holds.
