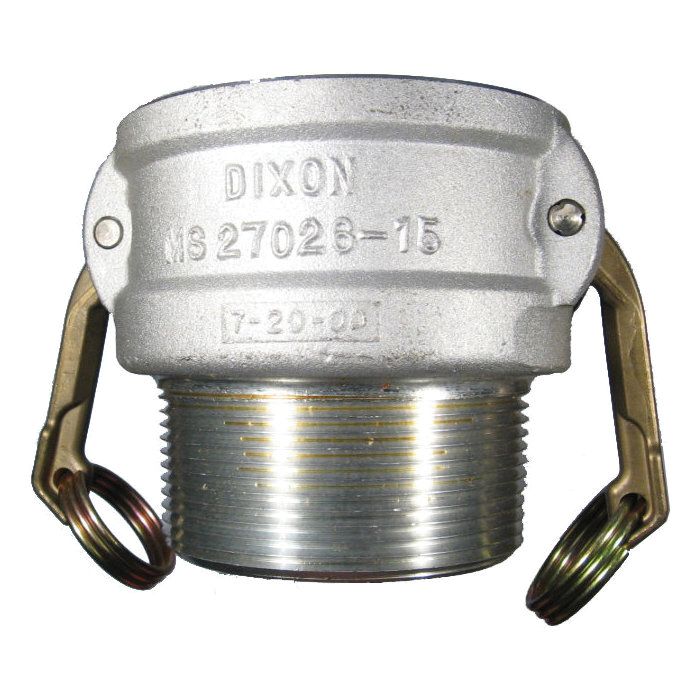

Aluminum Cam & Groove Coupler, Female Half, 1-1/4 Inch Male NPT

Description & Features

The Aluminum Cam & Groove Coupler Female Half 1-1/4 Inch Male NPT by Can Industrial Inc is an excellent choice for liquid applications. Constructed from high-quality Aluminum A356 or A104 this coupler ensures durability and reliable performance under various conditions. The cam levers are crafted from brass and the pins rings and safety clips are made with plated steel offering a robust and corrosion-resistant solution.

Featuring a convenient safety clip the female half coupler allows for secure attachment preventing accidental disconnection. The coupling process is straightforward: slide the adapter into the coupler and press the cam levers down with normal hand pressure. To uncouple simply lift the cam arms and remove the adapter. This model includes cast-in lugs for the attachment of safety pins ensuring an additional layer of security.

Designed to comply with the standard A-A-59326 (superseding MIL-C-27487F) or DIN 2828 this coupler is interchangeable with other products meeting these standards. The pressure rating for sizes 1/2 - 4 is up to 150 PSI while 5 to 8 sizes can handle 75 PSI. Note that fitting attachment suggestions are available in the hose section of the catalog.

Mfg. Name: Sunrise Hose

Supplier Part Number: ALB-125

Specifications

Brand Sunrise	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female Coupler, MNPT	Connection Type 1 Female Coupler	Connection Type 2 Male NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features
ALB-075 Aluminum Cam & Groove NPT Coupler	3/4	Safety Clip
ALB-100 Aluminum Cam & Groove NPT Coupler	1	Safety Clip
ALB-150 Aluminum Cam & Groove NPT Coupler	1-1/2	Safety Clip
ALB-200 Aluminum Cam & Groove NPT Coupler	2	Safety Clip
ALB-250 Aluminum Cam & Groove NPT Coupler	2-1/2	Safety Clip
ALB-300 Aluminum Cam & Groove NPT Coupler	3	Safety Clip
ALB-400 Aluminum Cam & Groove NPT Coupler	4	Safety Clip
ALB-600 Aluminum Cam & Groove NPT Coupler	6	Safety Clip

Product Questions & Answers (2)

Question by: Steve W on Jul 7, 2025, 12:10 PM

Reckon this'll hold up if I'm movin' somethin' other than water through it? Like maybe a little bit of oil?

Answer by: Customer Support on Jul 8, 2025, 12:14 PM

This coupler is designed for liquid applications. For specific recommendations, it's best to give us a call so we can make sure you get the right fit for the job.

Question by: Connie J on Dec 31, 2025, 2:26 PM

got a 1-1/4 inch male NPT fitting already on my line, this female cam lock gonna thread right onto that?

Answer by: Customer Support on Jan 2, 2026, 1:12 PM

That's what this coupler is built for. The female half has a 1-1/4 inch male NPT end, so it threads onto a matching female NPT port or fitting on your line. Once that connection is made, the cam lock side accepts a standard cam and groove adapter. Just slide the adapter in and push the cam levers down with normal hand pressure and you're locked in.
