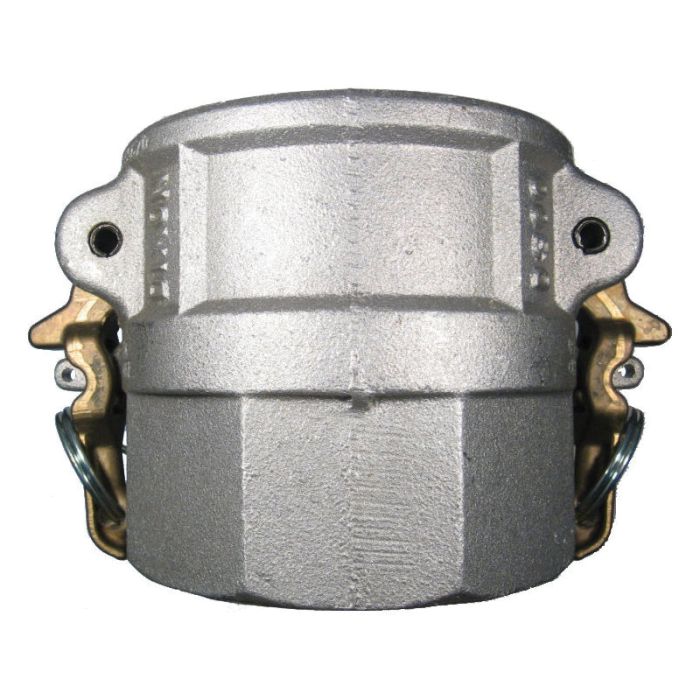

Aluminum Cam & Groove Coupler, Female Half, 1 Inch Female NPT

Description & Features

Crafted from high-quality aluminum A356 or A104 this cam & groove coupler is designed for efficient liquid transfer. The female half with a 1 inch female NPT connection ensures a secure and reliable fit.

Equipped with brass cam levers and plated steel pins rings and safety clips the coupler offers durability and stability. The Buna-N seals provide excellent resistance to oils and chemicals ensuring a long-lasting leak-proof connection.

The Aluminum Cam & Groove Coupler Female Half 1 Inch Female NPT incorporates a safety pin feature preventing accidental disconnection by requiring the removal of safety pins before uncoupling. Specifically the coupler meets the interchangeability standards of A-A-59326 and DIN 2828 ensuring compatibility with other products within the same standards.

Pressure ratings vary by size with this coupler rated at 150 PSI for 1/2 - 4 sizes. This coupler is ideal for various industrial liquid transfer applications though it should never be used with compressed air or steam services.

Supplier Part Number: ALD-100

Specifications

Brand Sunrise	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female Coupler, FNPT	Connection Type 1 Female Coupler	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features
ALD-200 Aluminum Cam & Groove NPT Coupler	2	Safety Clip
ALD-300 Aluminum Cam & Groove NPT Coupler	3	Safety Clip
ALD-400 Aluminum Cam & Groove NPT Coupler	4	Safety Clip
ALD-075 Aluminum Cam & Groove NPT Coupler	3/4	Safety Clip
ALD-125 Aluminum Cam & Groove NPT Coupler	1-1/4	Safety Clip
ALD-150 Aluminum Cam & Groove NPT Coupler	1-1/2	Safety Clip
ALD-250 Aluminum Cam & Groove NPT Coupler	2-1/2	Safety Clip
ALD-600 Aluminum Cam & Groove NPT Coupler	6	Safety Clip

Product Questions & Answers (2)

Question by: Norm S on Nov 8, 2025, 1:49 PM

Safety pins on female cam locks, how exactly do them work to keep things from coming apart on accident?

Answer by: Customer Support on Nov 10, 2025, 6:24 AM

Once the adapter is seated and the cam levers are pressed down, you run the safety pins through cast-in lugs on the coupler body. Those lugs line up with slots in the cam lever arms, and with the pins in place, the levers physically cannot lift. Nothing comes loose until someone pulls those pins out on purpose. It's a real straightforward mechanical lock, not just a friction fit.

Question by: Chad T on Oct 3, 2025, 7:40 AM

got a 1 inch female npt port on my line, will this camlock screw right on there?

Answer by: Customer Support on Oct 4, 2025, 12:40 PM

With a 1 inch female NPT connection on the back end, it threads onto a matching 1 inch male NPT fitting.
