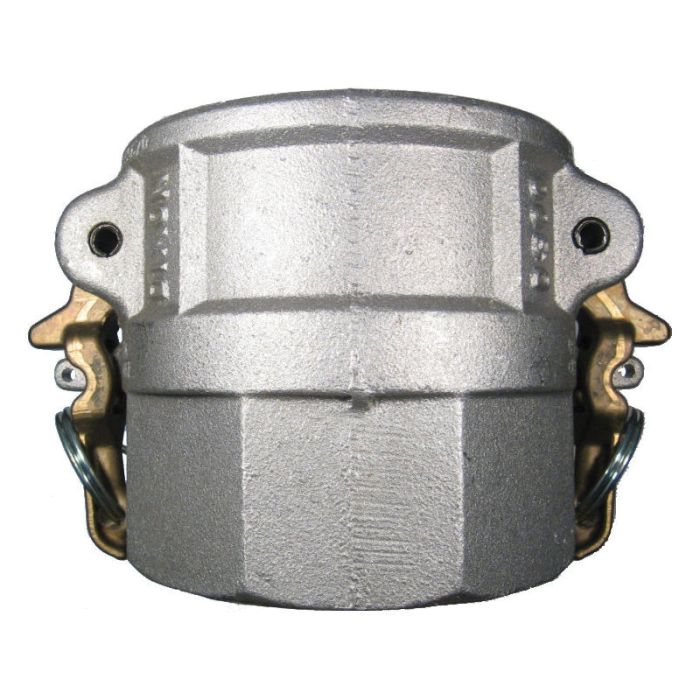

Aluminum Cam & Groove Coupler, Female Half, 3 Inch Female NPT

Description & Features

The Aluminum Cam & Groove Coupler, Female Half, 3 Inch Female NPT ensures superior reliability in liquid transfer scenarios. Engineered from premium Aluminum A356 or A104, and featuring brass cam levers, this coupler guarantees lasting performance. The use of Buna-N seals and plated steel for pins, rings, and safety clips adds an extra layer of security. Equipped with a practical safety pin feature, the coupler prevents accidental disconnection through cast-in lugs that secure the pins. The coupling mechanism is straightforward: with normal hand pressure, the cam levers can be pressed down to couple, and lifting the cam arms will uncouple the adapter. This model integrates seamlessly with products meeting standard A-A-59326 or DIN 2828. This versatile 3-inch female NPT coupler supports pressure ratings up to 150 PSI for sizes ranging from 1/2" to 4". It is designed exclusively for liquid use and is not compatible with compressed air or steam service.

MPN: C1LY22

Supplier Part Number: ALD-300

Specifications

Brand Sunrise	Connection Size 1 3 in	Connection Size 2 3 in	Connection Type Female Coupler, FNPT	Connection Type 1 Female Coupler	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features
ALD-200 Aluminum Cam & Groove NPT Coupler	2	Safety Clip
ALD-400 Aluminum Cam & Groove NPT Coupler	4	Safety Clip
ALD-075 Aluminum Cam & Groove NPT Coupler	3/4	Safety Clip
ALD-100 Aluminum Cam & Groove NPT Coupler	1	Safety Clip
ALD-125 Aluminum Cam & Groove NPT Coupler	1-1/4	Safety Clip
ALD-150 Aluminum Cam & Groove NPT Coupler	1-1/2	Safety Clip
ALD-250 Aluminum Cam & Groove NPT Coupler	2-1/2	Safety Clip
ALD-600 Aluminum Cam & Groove NPT Coupler	6	Safety Clip

Product Questions & Answers (2)

Question by: Brenda B on Jan 12, 2026, 5:42 PM

got a big shop compressor setup running 120 psi. will these hold up for the main air lines

Answer by: Customer Support on Jan 14, 2026, 1:03 PM

Absolutely not. Under no circumstances should you use cam and groove couplings for compressed air or steam service. They are strictly meant for handling liquids.

Question by: Larry G on Jul 4, 2025, 11:44 AM

got a 3" female NPT fitting on my transfer line, this the right coupler to mate up with it?

Answer by: Customer Support on Jul 5, 2025, 1:01 PM

Female NPT on your line means you'll want a female cam and groove coupler on the coupler side, and that's exactly what this one is. The 3-inch female NPT thread connects directly to your existing NPT fitting. Coupling and uncoupling is all hand pressure, press the cam levers down to lock in, lift the arms to release. The cast-in lugs also let you run a safety pin through once it's coupled, so it won't back off on you mid-transfer.
