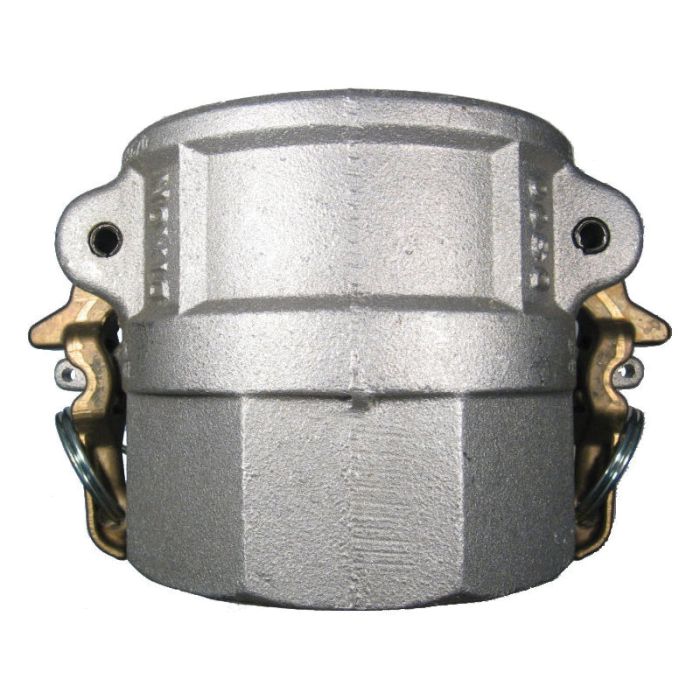

Aluminum Cam & Groove Coupler, Female Half, 6 Inch Female NPT

Description & Features

CAN Industrial Inc. offers a reliable Aluminum Cam & Groove Coupler Female Half 6 Inch Female NPT designed for efficient liquid transfer applications. This coupler is constructed with high-grade Aluminum A356 or A104 for durability and corrosion resistance.

Featuring brass cam levers and Buna-N seals this coupler ensures a secure connection and smooth operation. The plated steel pins rings and safety clips provide additional stability and safety during use.

Notable for its safety pin feature the coupler has cast-in lugs that allow safety pins to be attached preventing accidental uncoupling. It interchanges seamlessly with all products produced to standard A-A-59326 or DIN 2828 ensuring compatibility and versatility in various settings.

With a pressure rating of 75 PSI for sizes 5 to 8 this coupler is unsuitable for compressed air or steam service. The operation is straightforward: slide the adapter into the coupler press down the cam levers and lift the cam arms to uncouple.

For more information or specific recommendations please contact us.

Supplier Part Number: ALD-600

Specifications

Brand Sunrise	Connection Size 1 6 mm	Connection Size 2 6 mm	Connection Type Female Coupler, FNPT	Connection Type 1 Female Coupler	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Aluminum	Material Construction A104/A356 Aluminum	Maximum Operating Pressure 75 psi	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Features
ALD-200 Aluminum Cam & Groove NPT Coupler	2	Safety Clip
ALD-300 Aluminum Cam & Groove NPT Coupler	3	Safety Clip
ALD-400 Aluminum Cam & Groove NPT Coupler	4	Safety Clip
ALD-075 Aluminum Cam & Groove NPT Coupler	3/4	Safety Clip
ALD-100 Aluminum Cam & Groove NPT Coupler	1	Safety Clip
ALD-125 Aluminum Cam & Groove NPT Coupler	1-1/4	Safety Clip
ALD-150 Aluminum Cam & Groove NPT Coupler	1-1/2	Safety Clip
ALD-250 Aluminum Cam & Groove NPT Coupler	2-1/2	Safety Clip

Product Questions & Answers (3)

Question by: Daryl P on Oct 11, 2025, 5:51 PM

pressure rating on this thing -- is 75 PSI enough for a 6 inch cam lock running liquid transfer, or should I be looking at something smaller for higher pressure work?

Answer by: Customer Support on Oct 13, 2025, 2:18 PM

For sizes 5 inch through 8 inch, 75 PSI is the rated working pressure, so that applies directly to this 6 inch coupler. If your application runs at or below that, you're in good shape for liquid transfer. The smaller sizes in this cam and groove lineup are rated at 150 PSI, so if your system demands higher pressure, stepping down in size would be the path forward. Just keep in mind this coupler is not rated for compressed air or steam under any circumstances, regardless of pressure.

Question by: Travis H on Jul 14, 2025, 11:36 AM

What size hose would y'all recommend for this coupler?

Answer by: Customer Support on Jul 15, 2025, 5:22 PM

Fitting attachment suggestions are listed for each hose in the Hose section of this catalog.

Question by: Harold M on May 28, 2025, 8:18 PM

got a 6 inch female NPT line, is this the right camlock half for that or am i mixing things up

Answer by: Customer Support on May 30, 2025, 8:08 PM

For a 6 inch female NPT connection, this is the female cam and groove coupler with a 6 inch female NPT threaded end, so it matches that thread style and size on the pipe side.
