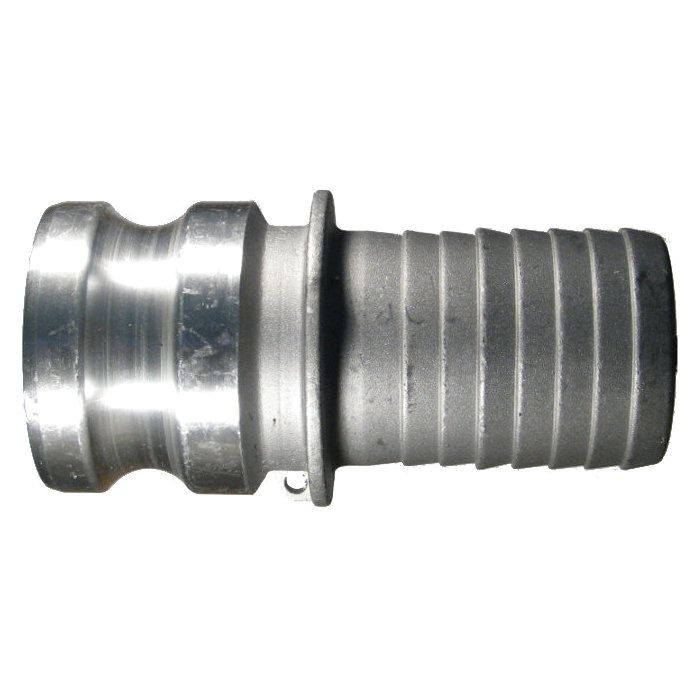

Aluminum Cam & Groove Adapter, Male Half, Inch Hose Shank

Description & Features

Designed for efficient liquid handling this robust male half cam and groove adapter features a 2-1/2" hose shank. Engineered by Sunrise Hose it adheres to the standards of A-A-59326 or DIN 2828 (excluding 1/2 and 8 sizes). The adapter couples by sliding into the coupler secured with brass cam levers and uncouples by lifting the arms. Safety pins add a level of security during usage.

The durable body is constructed from Aluminum A356 or A104 with plated steel pins rings and safety clips. This product interchanges seamlessly with other standard products and is designed to handle pressures up to 150 PSI for sizes up to 4 and 75 PSI for sizes 5 to 8. Note cam & groove couplings should not be used for compressed air or steam service.

Well-suited for multiple liquid applications this adapters compatibility and reliable performance make it an essential component in various industrial settings. For specific recommendations detailed fitting attachment suggestions are available in the hose section of the catalog.

Supplier Part Number: ALE-250

MPN: ALE-250

Specifications

Brand Sunrise	Connection Size 1 2-1/2 in	Connection Size 2 2-1/2 in	Connection Type Male Adapter, Hose Shank	Connection Type 1 Male Adapter	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Aluminum	Material Construction A104/A356 Aluminum	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487f) or DIN 2828, (No Standard Exists for 1/2 in and 8 in Sizes, Generally These Sizes Do not Interchange with Other Manufacturers), Pressure Ratings

Similar Products

Model Number	Size	Price	Action
ALE-100 Aluminum Cam & Groove Shank Adapter
ALE-150 Aluminum Cam & Groove Shank Adapter
ALE-200 Aluminum Cam & Groove Shank Adapter
ALE-300 Aluminum Cam & Groove Shank Adapter
ALE-400 Aluminum Cam & Groove Shank Adapter
ALE-600 Aluminum Cam & Groove Shank Adapter
ALE-075 Aluminum Cam & Groove Shank Adapter
ALE-125 Aluminum Cam & Groove Shank Adapter

Product Questions & Answers (2)

Question by: Ronnie B on Mar 24, 2026, 9:35 PM

what's the pressure rating on this thing, and does it hold up the same across all sizes?

Answer by: Customer Support on Mar 26, 2026, 6:46 AM

Pressure rating depends on the size. For sizes up to 4 inches, you're looking at 150 PSI. Once you get into the 5 inch through 8 inch range, that drops down to 75 PSI. Worth keeping in mind if you're running anything on the larger end and need to stay within spec.

Question by: Travis W on May 17, 2025, 8:56 PM

Hey, will this fit up with my existing cam lock stuff, or is it some off-brand size?

Answer by: Customer Support on May 19, 2025, 7:10 AM

Interchangeability is a key feature. It's made to match A-A-59326 and DIN 2828 standards, so it should work with any other standard cam and groove stuff you've got. Just a heads up though, the 1/2" and 8" sizes might not always play nice with other brands.
