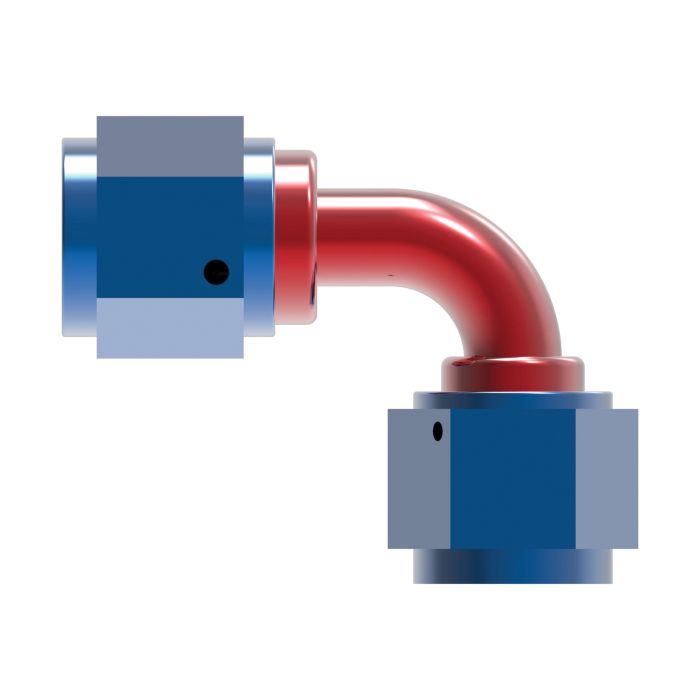

Red/Blue Anodized Aluminum Adapter, -12 Female JIC 37 deg Flare Swivel To -12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

Ask A Question

Description & Features

Designed for hydraulic line routing where a direction change is required, this Red/Blue Anodized Aluminum Adapter, -12 Female JIC 37 deg Flare Swivel To -12 Female JIC 37 deg Flare Swivel, 90 deg Elbow from Eaton Aeroquip provides a same-size, equal-dash (-12 to -12) connection in a compact 90-degree elbow configuration. Both ends feature female JIC 37-degree flare swivel fittings, allowing for rotational adjustment during installation to minimize line stress and accommodate varied port orientations.

Constructed from anodized aluminum, the fitting offers corrosion resistance with a reduced weight profile compared to steel alternatives. The dual-tone red and blue anodized finish aids in quick identification during assembly. This adapter carries catalog number C1GG16 and is suited for use in hydraulic systems where JIC-standard connections are specified.

SKU: FBM2981

Supplier Part Number (MPN): FBM2981

Alternate Part Numbers: C1GG16

Specifications

A Dash Size
-12
Adjustable End
No
B Dash Size
-12
Brand
Danfoss Power Solution (Aeroquip High Performance)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Supplier Part Number
FBM2981
Alternate Part Numbers
Alternate Part Number C1GG16, Alternate Part Number MINO-00015X26500
Product Weight
0.19 lbs

Related Documents

Similar Products

Model Number A Dash Size B Dash Size Price Action
Red/Blue Anodized Aluminum Adapter, -06 Female JIC 37 deg Flare Swivel To -06 Female JIC 37 deg Flare Swivel, 90 deg Elbow

FBM2978 Aluminum Female JIC Swivel 90 Elbow

-06

-06

Red/Blue Anodized Aluminum Adapter, -12 Female JIC 37 deg Flare Swivel To -12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

FBM2981 Aluminum Female JIC Swivel 90 Elbow

-12

-12

Product Questions & Answers (2)

Question by: Jerry W on Oct 21, 2025, 11:18 AM
got a tight spot on my hose run, is this the 90 that lets you clock both ends where you need em?
Answer by: Customer Support on Oct 23, 2025, 6:54 AM
For cramped routing, it helps a bunch because it is a compact 90 degree elbow and both sides are female JIC 37 degree flare swivel ends. That swivel feature lets you rotate each connection during install so you can line things up without putting a twist in the hose.
Question by: Tommy M on Aug 14, 2025, 7:35 PM
both ends on this fitting are female JIC swivel, right? trying to figure out if i can run a hose from one end and another hose from the other without needing a male adapter in between
Answer by: Customer Support on Aug 16, 2025, 7:12 AM
Both ends are female JIC 37-degree flare swivel, so you'd be connecting two male JIC fittings, one on each side. If your hose assemblies or port connections have male JIC ends, this goes right in between them and makes the 90-degree turn for you. The swivel on each end lets you rotate during install so you're not fighting the lines to get everything lined up.
