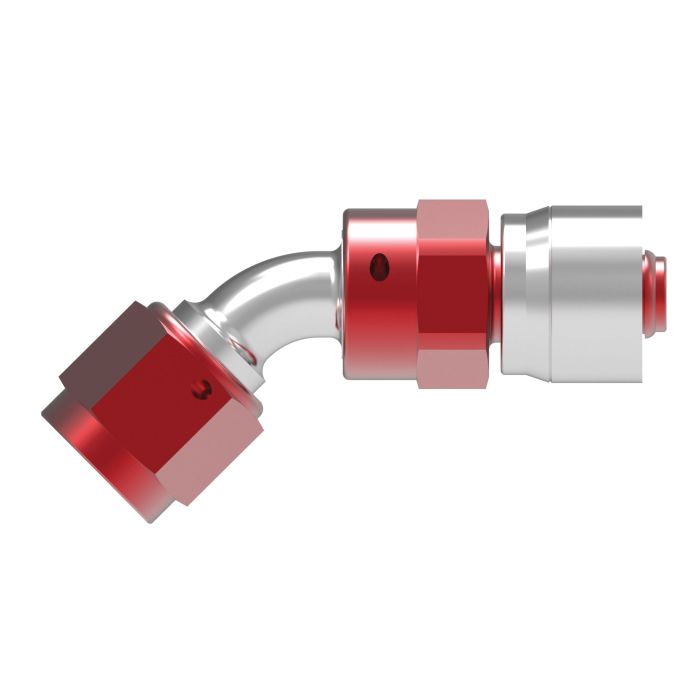

Red/Silver Anodized Aluminum Crimp Fitting for AQP & StartLite Racing Hose, Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

Ask A Question

Description & Features

Designed for use with Aeroquip AQP and StartLite racing hose, this red/silver anodized aluminum crimp fitting features a Female JIC 37° flare swivel end in a 45° elbow configuration at -10 hose size. The anodized aluminum construction keeps weight low without sacrificing durability, making it well suited for motorsport and performance hydraulic plumbing in space-constrained routing applications.

The Red/Silver Anodized Aluminum Crimp Fitting for AQP & StartLite Racing Hose, Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow is an Eaton Aeroquip product with an adjustable swivel end, allowing for angular alignment during installation without disturbing the hose assembly. The 37° JIC flare connection provides a reliable metal-to-metal seal compatible with a wide range of hydraulic fluids. Catalog number C1ZV94 identifies this fitting within the Aeroquip product line.

SKU: FBM4224

Supplier Part Number (MPN): FBM4224

Alternate Part Numbers: C1ZV94

Specifications

a Dimensions
2.6 in
Color
Red
Compatible Hose ID
1/2 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel
Connection Type 1
Female 37 deg Swivel
Connection Type 2
Female 37 deg Swivel
Construction Style
Reusable
Cut-Off Factor
1.71 in
Dimensions
0.48 in ID
Drop Dimensions
0.671 in
Finish
Anodized
Fitting Type
45 deg Elbow
For Use With
AQP® Racing Hoses, StartLite® Racing Hoses
Hex Size
1 in, 1.06 in
Hose Dash Size
10
Material
Aluminum
Material Construction
Aluminum
Operating Temperature
-40 to 300 deg F
Seal Material
FKM
Segment Code
A
Thread Size
7/8-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dale M on Feb 22, 2026, 9:42 AM
got a piece of Aeroquip AQP hose in -10, will this crimp end match up with it or is it for a different hose style
Answer by: Customer Support on Feb 24, 2026, 8:45 AM
Built specifically for Aeroquip AQP and StartLite racing hose, this fitting is the crimp style for a -10 hose size. The hose end is a Female JIC 37 degree flare swivel, and the body is a 45 degree elbow.
