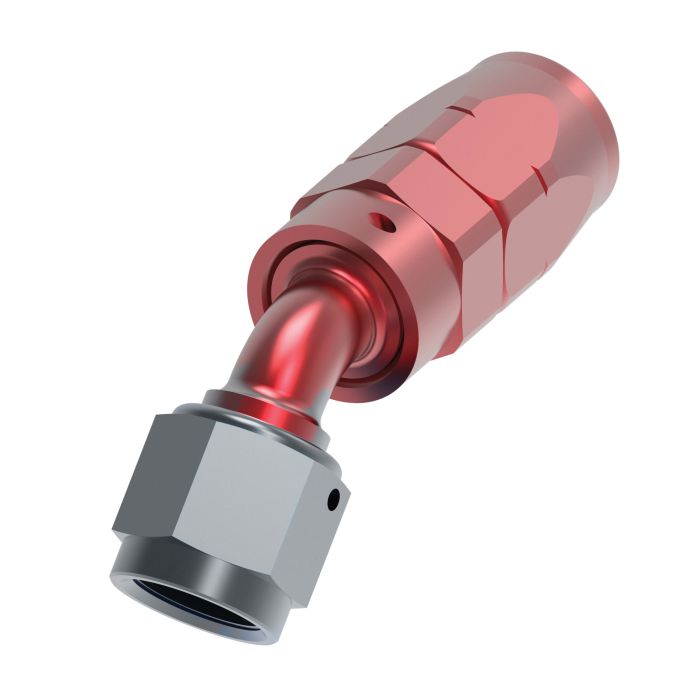

Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -12 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

Description & Features

Engineered for precision and durability, the red and blue anodized aluminum reusable fitting is designed for compatibility with AQP and StartLite Racing Hose. Featuring a -12 hose connection and a female JIC 37-degree flare swivel, this fitting is ideal for high-performance racing applications. The 45-degree elbow design allows for optimized hose routing in confined spaces, enhancing fluid flow efficiency.

Manufactured by Eaton Aeroquip, a trusted name in hydraulic solutions, this fitting offers superior fluid compatibility and is adjustable to meet specific installation requirements. The anodized finish not only adds aesthetic appeal but also provides corrosion resistance, ensuring longevity in demanding environments. This fitting is a vital component for professionals seeking reliable performance in hydraulic systems.

SKU: FBM4025

Supplier Part Number (MPN): FBM4025

Alternate Part Numbers: C1CQ74, FCM4025

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.33 in	Color Blue/Red	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel	Connection Type 1 Female 37 deg Swivel	Connection Type 2 Female 37 deg Swivel	Construction Style Reusable	Cut-Off Factor 1.812 in	Drop Dimensions 0.729 in	Finish Anodized	Fitting Dash Size 12	Fitting Type 45 deg Elbow	For Use With AQP® Racing Hoses, StartLite® Racing Hoses	Hex Size 1-1/4	Hose Dash Size 12	Material Aluminum	Material Construction Aluminum	Seal Material FKM	Segment Code A	Thread Size 1-1/16-12

Similar Products

Model Number	Hose Dash Size	Adjustable End	Cut-Off Factor	Fitting Dash Size
FBM4022 Aluminum JIC Reusable Fitting	-06	1	1.454 in	-06
FBM4023 Aluminum JIC Reusable Fitting	-08	1	1.58 in	-08
FBM4024 Aluminum JIC Reusable Fitting	-10	1	1.73 in	-10
FBM4026 Aluminum JIC Reusable Fitting	-16	1	2.05 in	-16
FBM4422 Aluminum JIC Reusable Fitting	-06	1	1.36 in	-06

Product Questions & Answers (2)

Question by: Dwayne W on Jan 14, 2026, 7:06 AM

Running AQP hose on a build right now and need a -12 fitting that'll clear some tight spots near the firewall. Does the 45-degree angle on this one actually give enough clearance to make routing easier, or is it more of a marginal difference?

Answer by: Customer Support on Jan 16, 2026, 8:08 AM

For tight routing situations, the 45-degree elbow geometry on this fitting makes a real practical difference. It splits the difference between a straight fitting and a 90, so you get meaningful directional change without the sharp bend that can stress the hose or eat up too much space. On a -12 hose near a firewall or frame rail, that angle typically opens up enough room to make clean, low-stress routing achievable where a straight fitting just won't cooperate.

Question by: Norm B on Oct 1, 2025, 5:00 PM

got a -12 AQP hose on the car, will this reusable fitting screw on right and give me a 45 to tuck the line?

Answer by: Customer Support on Oct 3, 2025, 9:11 AM

For a -12 AQP or StartLite Racing Hose, this fitting matches that hose size and uses a 45 degree elbow to help route the hose in tighter spots. The outlet side is a female JIC 37 degree flare swivel, so it mates to the matching JIC 37 degree male flare.
