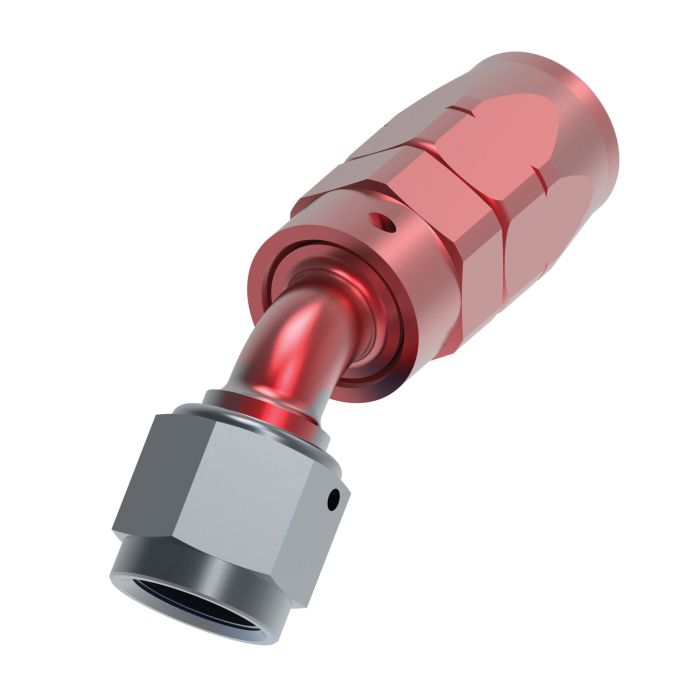

main product photo

Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -16 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

Ask A Question

Description & Features

Designed for use with Aeroquip AQP and StartLite racing hose, this Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -16 Hose & Female JIC 37 Degree Flare Swivel, 45 Degree Elbow is a reusable aluminum hose fitting from Eaton Aeroquip, configured as a 45-degree elbow with a female JIC 37-degree flare swivel end. The anodized aluminum construction keeps weight low while offering corrosion resistance suited to racing and high-performance hydraulic applications.

The adjustable swivel end allows for rotational positioning during assembly, reducing stress on the hose assembly in tight routing environments. The red/blue anodized finish aids in quick identification of fluid flow direction, a common practice in racing and performance fluid systems. Catalog number C1EC49 identifies this fitting within the Eaton Aeroquip product line.

SKU: FBM4026

Supplier Part Number (MPN): FBM4026

Alternate Part Numbers: C1EC49, FCM4026

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.21 in
Color
Blue/Red
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel
Connection Type 1
Female 37 deg Swivel
Connection Type 2
Female 37 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2.05 in
Drop Dimensions
0.66 in
Finish
Anodized
Fitting Dash Size
16
Fitting Type
45 deg Elbow
For Use With
AQP® Racing Hoses, StartLite® Racing Hoses
Hex Size
1-1/2 in
Hose Dash Size
16
Material
Aluminum
Material Construction
Aluminum
Seal Material
FKM
Segment Code
A
Thread Size
1-5/16-12

Similar Products

Model Number Hose Dash Size Adjustable End Cut-Off Factor Fitting Dash Size Price Action
Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -06 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

FBM4022 Aluminum JIC Reusable Fitting

-06

1

1.454 in

-06

Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -08 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

FBM4023 Aluminum JIC Reusable Fitting

-08

1

1.58 in

-08

Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -10 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

FBM4024 Aluminum JIC Reusable Fitting

-10

1

1.73 in

-10

Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -12 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

FBM4025 Aluminum JIC Reusable Fitting

-12

1

1.812 in

-12

Red/Blue Anodized Aluminum Reusable Fitting for AQP & StartLite Racing Hose, -06 Hose & Female JIC 37 deg Flare Swivel, 45 deg Elbow

FBM4422 Aluminum JIC Reusable Fitting

-06

1

1.36 in

-06

Product Questions & Answers (1)

Question by: Jerry M on Nov 15, 2025, 7:39 PM
got a -16 Aeroquip AQP hose on the car, will this reusable elbow fitting match up with it?
Answer by: Customer Support on Nov 17, 2025, 6:43 AM
For a -16 size Aeroquip AQP or StartLite racing hose, this fitting is the matching reusable style. It is set up as a 45 degree elbow with a female JIC 37 degree flare swivel on the end.
