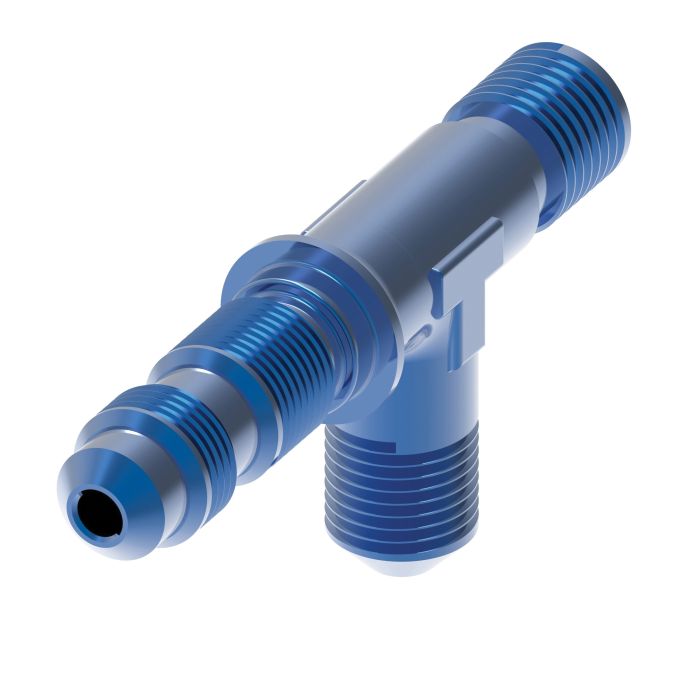

Adapter (AN 804), -03 Male JIC 37 deg Flare Run To -03 Male JIC 37 deg Flare Branch, Bulkhead Tee

Ask A Question

Description & Features

Designed for compact routing in space-constrained hydraulic circuits, the Adapter (AN 804), -03 Male JIC 37° Flare Run To -03 Male JIC 37° Flare Branch, Bulkhead Tee is an Eaton Aeroquip fitting that provides a three-way bulkhead connection in a uniform -03 dash size across all ports. The 37-degree flare seating on all male JIC connections ensures reliable metal-to-metal sealing suited to demanding fluid power environments.

With matching A, B, and C dash sizes at -03, this tee adapter simplifies line routing through panels or bulkheads while maintaining consistent flow path geometry. Built to Eaton Aeroquip's performance standards, it is compatible with a broad range of hydraulic fluids as referenced in Eaton's fluid compatibility documentation. The catalog reference for this fitting is C1ZY22.

SKU: FBM2815

Supplier Part Number (MPN): FBM2815

Alternate Part Numbers: C1ZY22

Specifications

Brand
Aeroquip® by Danfoss
A Dash Size
03
B Dash Size
03
Color
Blue
Connection Size 1
3/16 in
Connection Size 2
3/16 in
Connection Type
Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male JIC
Connection Type 3
Male JIC
Dimensions
2.311 in L x 0.375 in W x 0.914 in H
Finish
Anodized
Fitting Type
Tee-Adapter
Material
Steel
Material Construction
Steel
Thread Size
3/8-24

Product Questions & Answers (1)

Question by: Daryl P on Jul 1, 2025, 3:50 PM
got a panel pass-through setup, is this the tee that lets me run a -03 line through the bulkhead and kick a -03 branch off it?
Answer by: Customer Support on Jul 3, 2025, 8:35 AM
For a bulkhead-style three-way connection, this fitting is set up exactly that way. It is an AN 804 bulkhead tee with -03 male JIC 37 degree flare on the run and the branch, so all three ports stay the same -03 dash size while you route through a panel or bulkhead.
