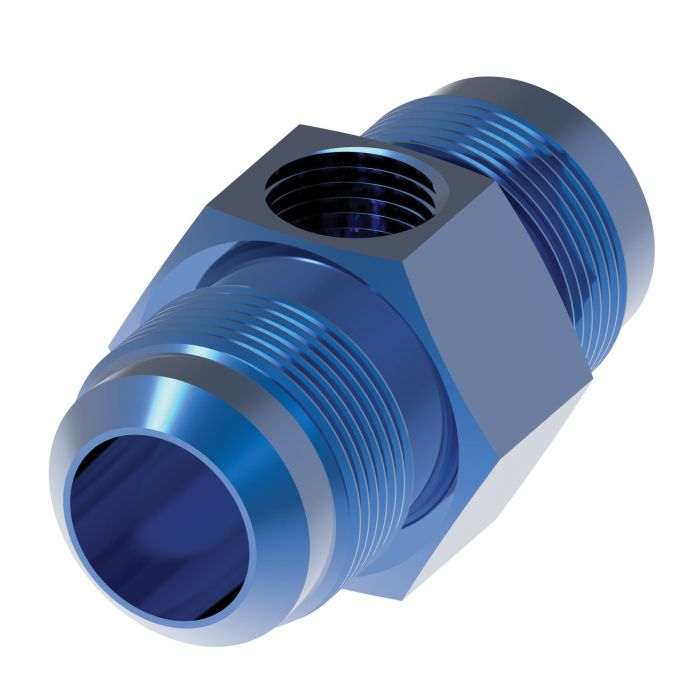

Blue Anodized Aluminum In-Line Fuel Pressure Adapter, -08 Male JIC 37 deg Flare Run To 1/8 Inch Female NPT Branch, Tee

Ask A Question

Description & Features

Designed for fuel pressure monitoring in inline hydraulic and fluid system assemblies, the Blue Anodized Aluminum In-Line Fuel Pressure Adapter, -08 Male JIC 37° Flare Run To 1/8 Inch Female NPT Branch, Tee is manufactured by Eaton Aeroquip to catalog number C1EB38. The blue anodized aluminum construction provides corrosion resistance while keeping weight low, making it well suited for engine and fuel system plumbing in motorsport, industrial, and performance applications.

The tee configuration features -08 male JIC 37° flare connections on the run ports and a 1/8 inch female NPT branch port, allowing a pressure gauge or sensor to be tapped into an existing -08 JIC fuel line without interrupting flow. The distinct blue anodizing also aids in quick visual identification during assembly and servicing.

SKU: FBM2184

Supplier Part Number (MPN): FBM2184

Alternate Part Numbers: C1EB38, FCM2184

Specifications

A Dash Size
-08
Adjustable End
No
B Dash Size
-08
C Pipe Size
1/8
Brand
Danfoss Power Solution (Aeroquip High Performance)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Supplier Part Number
FBM2184
Alternate Part Numbers
Alternate Part Number C1EB38, Alternate Part Number FCM2184
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number A Dash Size B Dash Size C Pipe Size Price Action
Blue Anodized Aluminum In-Line Fuel Pressure Adapter, -06 Male JIC 37 deg Flare Run To 1/8 Inch Female NPT Branch, Tee

FBM2183 Aluminum Male JIC To Female NPT Tee

-06

-06

1/8

Blue Anodized Aluminum In-Line Fuel Pressure Adapter, -08 Male JIC 37 deg Flare Run To 1/8 Inch Female NPT Branch, Tee

FBM2184 Aluminum Male JIC To Female NPT Tee

-08

-08

1/8

Product Questions & Answers (1)

Question by: Harold M on Apr 27, 2025, 8:01 AM
got a -08 JIC fuel line and need to add a pressure gauge without redoing the whole setup. is this the tee that lets me do that?
Answer by: Customer Support on Apr 28, 2025, 9:30 AM
For tapping fuel pressure into an existing -08 JIC line, this adapter does exactly that. The run ports are -08 male JIC 37 degree flare, and the branch is a 1/8 inch female NPT port where you can thread in a gauge or sensor while keeping flow through the main line.
