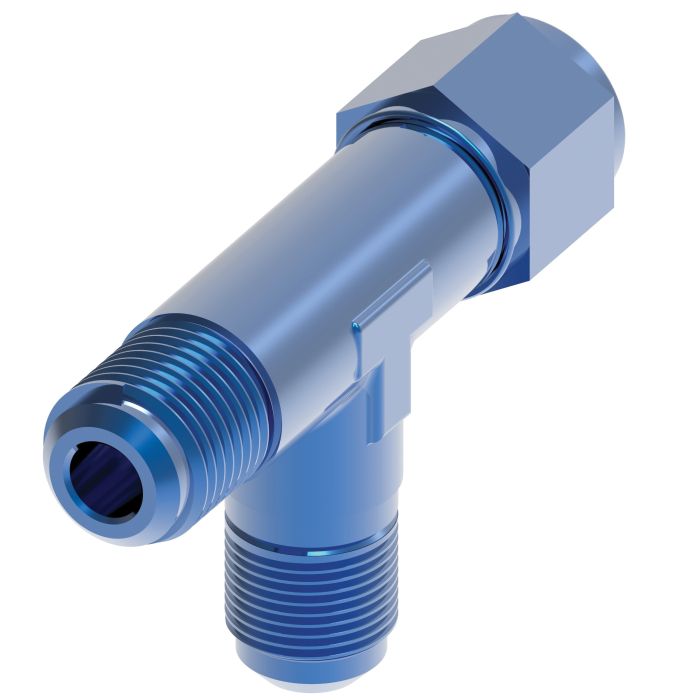

Blue Anodized Aluminum Adapter, -10 Male JIC 37 deg Flare Run & Branch To -10 Female JIC 37 deg Flare Swivel Run, Tee

Ask A Question

Description & Features

Designed for -10 dash size hydraulic circuits requiring a tee configuration, the Blue Anodized Aluminum Adapter, -10 Male JIC 37 deg Flare Run & Branch To -10 Female JIC 37 deg Flare Swivel Run, Tee from Eaton Aeroquip provides a reliable three-port connection in a compact aluminum body. The blue anodized finish aids corrosion resistance and allows for quick visual identification in multi-line installations.

This fitting connects male JIC 37-degree flare run and branch ports to a female JIC 37-degree flare swivel run port, making it well suited for inline tee junctions in mobile hydraulic equipment, industrial machinery, and fluid power systems where routing flexibility is needed. The swivel feature on the female run port simplifies assembly by allowing the connected line to be positioned without rotating the fitting body. Cataloged under Eaton Aeroquip catalog number C1FV87, this adapter is compatible with a broad range of hydraulic fluids as documented in the Eaton fluid compatibility reference.

SKU: FBM2257

Supplier Part Number (MPN): FBM2257

Alternate Part Numbers: C1FV87

Specifications

Adjustable End
No
Dash Size
-10
Brand
Danfoss Power Solution (Aeroquip High Performance)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Materials
Blue Anodized Aluminum
Supplier Part Number
FBM2257
Alternate Part Numbers
Alternate Part Number C1FV87, Alternate Part Number MINO-00015X26203
Product Weight
0.16 lbs

Related Documents

Similar Products

Model Number Dash Size Materials Price Action
Blue Anodized Aluminum Adapter, -10 Male JIC 37 deg Flare Run & Branch To -10 Female JIC 37 deg Flare Swivel Run, Tee

FBM2257 Aluminum Male To Female JIC Tee

-10

Blue Anodized Aluminum

Product Questions & Answers (3)

Question by: Roy F on Jun 17, 2025, 2:39 PM
Would this work alright for hooking up a hydraulic gauge on my tractor?
Answer by: Customer Support on Jun 18, 2025, 2:53 PM
This tee fitting is designed to create a branch in a -10 sized hydraulic line, which could definitely work for adding a pressure gauge. Just double-check that the gauge and your tractor's hydraulics both use the JIC 37-degree flare fittings this adapter is made for, and that -10 is the correct size for your application.
Question by: Dustin F on Dec 11, 2025, 12:30 PM
got a tee setup on a loader hydraulic line and need to split off without twisting everything up, does the female run port on this thing swivel, or is it fixed?
Answer by: Customer Support on Dec 13, 2025, 6:14 AM
The female run port is a swivel, so the hose or line connected there can be positioned without having to rotate the fitting body itself. That makes it a lot easier to route lines cleanly in tight spots without fighting the assembly to get everything lined up.
Question by: Roy T on Aug 18, 2025, 9:56 PM
trying to tee off a -10 jic line, are all three ports on this one -10 and 37 degree flare?
Answer by: Customer Support on Aug 20, 2025, 7:34 PM
For a -10 dash JIC setup, it gives you a three port tee using JIC 37 degree flare connections. The run and branch are -10 male JIC 37 degree flare, and the remaining run port is a -10 female JIC 37 degree flare swivel.
