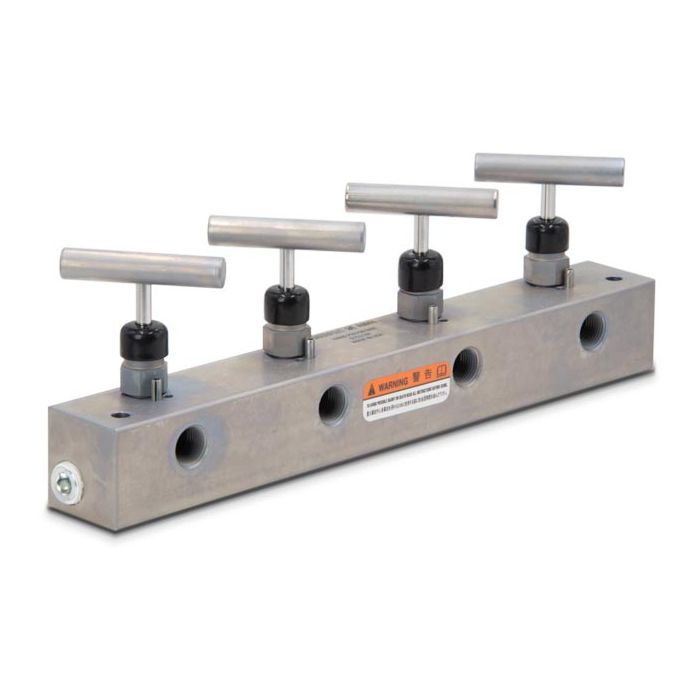

Enerpac | 7 Port, Split Flow Hydraulic Manifold | AM41

Description & Features

The Enerpac AM-Series Hydraulic Manifold is a versatile component designed for effective flow management in industrial applications. This 7 Port, Split Flow Hydraulic Manifold allows for simultaneous control of 4 single-acting cylinders, enhancing operational efficiency. Each port is equipped with an integral needle valve handle, enabling precise manual activation and deactivation of the hydraulic flow. Built to withstand demanding conditions, this manifold supports a maximum operating pressure of 10,000 psi (700 bar), making it suitable for high-pressure environments.

Featuring 3/8"-18 NPTF port connections, this manifold ensures secure and reliable integration with existing hydraulic systems. The inclusion of mounting holes further simplifies installation, allowing for stable and secure placement. Part of the Enerpac AM Series, this manifold is engineered to deliver consistent performance and durability in industrial settings, ensuring seamless operation of hydraulic machinery.

SKU: AM-41

Supplier Part Number (MPN): AM41

Specifications

Brand Enerpac	Brand Enerpac	Pack Size 1.00	UOM EA	Max Operating Pressure 10,000 psi (700 bar)	Product Type Manifold	Series AM	Subtype Split Flow Manifold	Supplier Part Number AM41	Product Weight 9.33 lbs

Product Questions & Answers (2)

Question by: Sherry O on Dec 16, 2025, 6:33 AM

got four single-acting cylinders i need to run at the same time. is the AM41 the right piece for splitting one inlet out to all four?

Answer by: Customer Support on Dec 18, 2025, 8:46 AM

For that setup, the AM41 is meant to act as a split-flow valve that takes one inlet and feeds four outlet ports so you can control four single-acting cylinders simultaneously.

Question by: Billy M on Apr 3, 2026, 5:19 PM

Running four single-acting cylinders off one pump line, does this manifold let me control each one separate, or is it all or nothing when I open it up?

Answer by: Customer Support on Apr 5, 2026, 2:44 PM

Each of the four outlet ports has its own needle valve handle, so you can open and close them independently. If you only need flow going to two of the cylinders at a given moment, just leave the other two closed. All ports share the same 3/8"-18 NPTF connection size, and the whole assembly is rated to 10,000 psi, so it holds up under a full pump load without issue.
