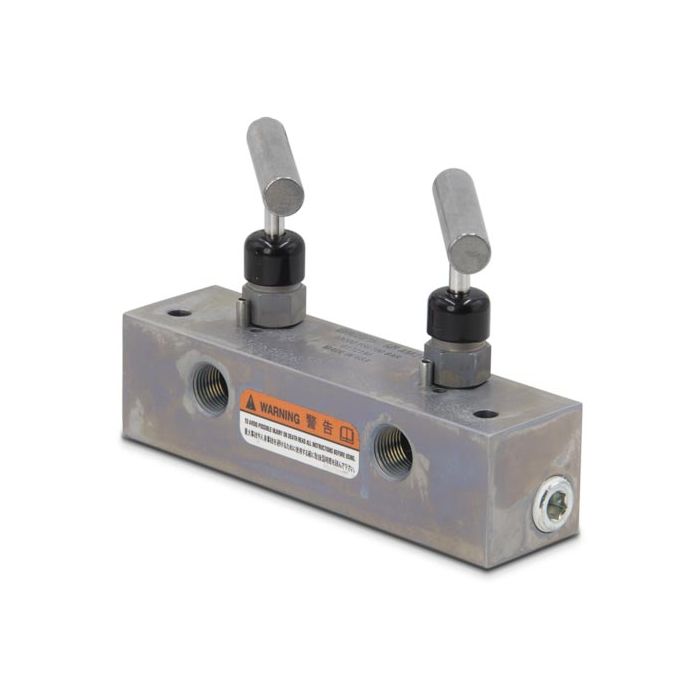

Enerpac | 5 Port, Split Flow Hydraulic Manifold | AM21

Description & Features

Designed for splitting hydraulic flow from a single inlet to two outlet ports, the Enerpac AM-Series 5 Port, Split Flow Hydraulic Manifold allows simultaneous control of two single-acting cylinders from one source. Each port is fitted with an integral needle valve operated by a manual handle, enabling flow to be switched on or off at each outlet independently.

All five ports use 3/8"-18 NPTF connections, and the manifold is rated to a maximum operating pressure of 10,000 psi (700 bar). Mounting holes are included on the body for fixed installation. The AM-Series is a compact, straightforward solution for applications requiring controlled, simultaneous cylinder actuation without additional valve components.

SKU: AM21

Specifications

Brand Enerpac	Pack Size 1.00	UOM EA	Max Operating Pressure 10,000 psi (700 bar)	Product Type Manifold	Series AM	Subtype Split Flow Manifold	Supplier Part Number AM21	Product Weight 4.80 lbs

Product Questions & Answers (2)

Question by: Troy R on Aug 20, 2025, 2:03 PM

got a single pump line coming in. can i split it and run two single-acting cylinders at the same time with this AM21?

Answer by: Customer Support on Aug 22, 2025, 12:59 PM

With the AM21, one inlet can be split out to two outlet ports so you can control two single acting cylinders simultaneously. Each outlet has its own integral needle valve handle, so you can open or shut off flow to each cylinder by hand.

Question by: Cheryl G on Apr 25, 2026, 6:48 AM

Both my cylinders gotta extend at the same time or the whole setup goes sideways. this manifold split the flow evenly to two single-acting cylinders?

Answer by: Customer Support on Apr 27, 2026, 6:50 AM

Running two single-acting cylinders simultaneously is exactly what the AM21 is built for. Each of the two outlet ports feeds its own cylinder, and you open or close each one manually using the integral needle valve handle. As long as both handles are open, flow from the single inlet gets split out to both cylinders at once. All ports are 3/8"-18 NPTF, so connecting your lines is straightforward.
