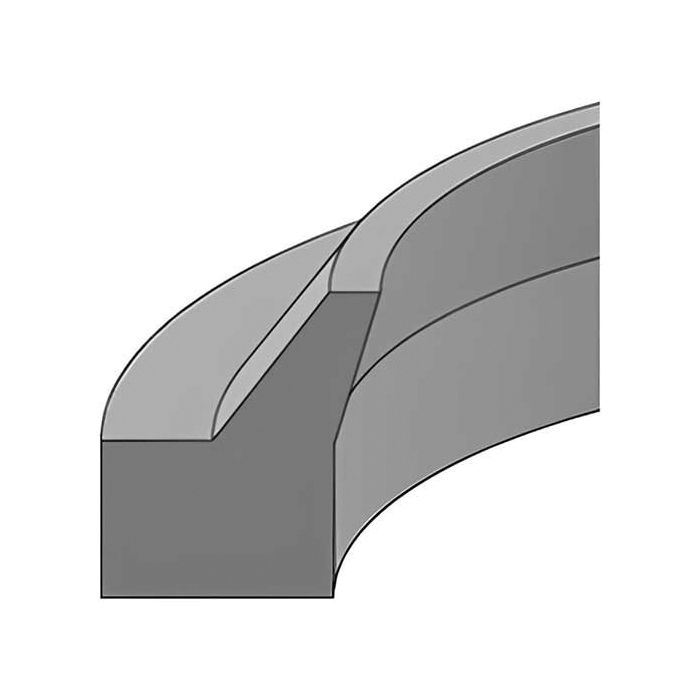

AN Style Urethane Wiper Ring, 0.69 Inch Rod Diameter, 0.95 Inch Groove OD, Inch Groove Width

Ask A Question

Description & Features

Designed for hydraulic rod sealing applications, the AN Style Urethane Wiper Ring, 0.69 Inch Rod Diameter, 0.95 Inch Groove OD fits a rod diameter of 0.685 inches and a groove OD of 0.948 inches. Manufactured by Hercules Sealing Products, this wiper ring is constructed from urethane, offering a working temperature range of -65°F to 220°F, suitable for a broad range of hydraulic cylinder environments.

The AN style wiper ring is available in variant configurations: the SH suffix designates a slotted heel design, the V suffix indicates fluorocarbon material, and the B suffix denotes carboxylated nitrile material. These options allow selection based on fluid compatibility or environmental requirements without changing the core dimensional profile.

SKU: AN-04

Supplier Part Number (MPN): AN-04

Alternate Part Numbers: C1CH88, MI-00865593, MINO-00407X10002

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
7/64 in THK
Durometer
90
Groove OD b Dimensions
0.948 in
Inside Diameter
0.69 in
Material
Urethane
Series
AN Series

Similar Products

Model Number Rod Diameter A Groove O.D. B Groove Width C Price Action
AN Style Urethane Wiper Ring, 0.62 Inch Rod Diameter, 0.89 Inch Groove OD, Inch Groove Width

AN-03 AN Style Urethane Wiper Ring

0.623

0.885

AN Style Urethane Wiper Ring, 1.00 Inch Rod Diameter, 1.27 Inch Groove OD, Inch Groove Width

AN-09 AN Style Urethane Wiper Ring

0.998

1.272

AN Style Urethane Wiper Ring, 1.25 Inch Rod Diameter, 1.52 Inch Groove OD, Inch Groove Width

AN-13 AN Style Urethane Wiper Ring

1.248

1.522

AN Style Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.30 Inch Groove OD, Inch Groove Width

AN-21 AN Style Urethane Wiper Ring

1.998

2.302

AN Style Urethane Wiper Ring, 2.50 Inch Rod Diameter, 2.80 Inch Groove OD, Inch Groove Width

AN-25 AN Style Urethane Wiper Ring

2.498

2.802

AN Style Urethane Wiper Ring, 0.56 Inch Rod Diameter, 0.82 Inch Groove OD, Inch Groove Width

AN-02 AN Style Urethane Wiper Ring

0.56

0.823

AN Style Urethane Wiper Ring, 0.75 Inch Rod Diameter, 1.01 Inch Groove OD, Inch Groove Width

AN-05 AN Style Urethane Wiper Ring

0.748

1.01

AN Style Urethane Wiper Ring, 0.87 Inch Rod Diameter, 1.15 Inch Groove OD, Inch Groove Width

AN-07 AN Style Urethane Wiper Ring

0.873

1.147

AN Style Urethane Wiper Ring, 0.94 Inch Rod Diameter, 1.21 Inch Groove OD, Inch Groove Width

AN-08 AN Style Urethane Wiper Ring

0.935

1.209

AN Style Urethane Wiper Ring, 1.12 Inch Rod Diameter, 1.40 Inch Groove OD, Inch Groove Width

AN-11 AN Style Urethane Wiper Ring

1.123

1.397

AN Style Urethane Wiper Ring, 1.19 Inch Rod Diameter, 1.46 Inch Groove OD, Inch Groove Width

AN-12 AN Style Urethane Wiper Ring

1.185

1.459

AN Style Urethane Wiper Ring, 1.37 Inch Rod Diameter, 1.68 Inch Groove OD, Inch Groove Width

AN-15 AN Style Urethane Wiper Ring

1.373

1.677

AN Style Urethane Wiper Ring, 1.44 Inch Rod Diameter, 1.74 Inch Groove OD, Inch Groove Width

AN-16 AN Style Urethane Wiper Ring

1.435

1.739

AN Style Urethane Wiper Ring, 1.50 Inch Rod Diameter, 1.80 Inch Groove OD, Inch Groove Width

AN-17 AN Style Urethane Wiper Ring

1.498

1.802

AN Style Urethane Wiper Ring, 1.62 Inch Rod Diameter, 1.93 Inch Groove OD, Inch Groove Width

AN-18 AN Style Urethane Wiper Ring

1.623

1.927

AN Style Urethane Wiper Ring, 1.75 Inch Rod Diameter, 2.05 Inch Groove OD, Inch Groove Width

AN-19 AN Style Urethane Wiper Ring

1.748

2.052

AN Style Urethane Wiper Ring, 1.87 Inch Rod Diameter, 2.18 Inch Groove OD, Inch Groove Width

AN-20 AN Style Urethane Wiper Ring

1.873

2.177

AN Style Urethane Wiper Ring, 2.12 Inch Rod Diameter, 2.43 Inch Groove OD, Inch Groove Width

AN-22 AN Style Urethane Wiper Ring

2.123

2.427

AN Style Urethane Wiper Ring, 2.25 Inch Rod Diameter, 2.55 Inch Groove OD, Inch Groove Width

AN-23 AN Style Urethane Wiper Ring

2.248

2.552

AN Style Urethane Wiper Ring, 2.37 Inch Rod Diameter, 2.68 Inch Groove OD, Inch Groove Width

AN-24 AN Style Urethane Wiper Ring

2.373

2.677

AN Style Urethane Wiper Ring, 2.62 Inch Rod Diameter, 2.99 Inch Groove OD, Inch Groove Width

AN-26 AN Style Urethane Wiper Ring

2.623

2.989

AN Style Urethane Wiper Ring, 3.00 Inch Rod Diameter, 3.36 Inch Groove OD, Inch Groove Width

AN-29 AN Style Urethane Wiper Ring

2.997

3.364

AN Style Urethane Wiper Ring, 3.25 Inch Rod Diameter, 3.61 Inch Groove OD, Inch Groove Width

AN-31 AN Style Urethane Wiper Ring

3.247

3.614

AN Style Urethane Wiper Ring, 3.50 Inch Rod Diameter, 3.86 Inch Groove OD, Inch Groove Width

AN-33 AN Style Urethane Wiper Ring

3.497

3.864

AN Style Urethane Wiper Ring, 3.75 Inch Rod Diameter, 4.11 Inch Groove OD, Inch Groove Width

AN-35 AN Style Urethane Wiper Ring

3.747

4.114

AN Style Urethane Wiper Ring, 4.00 Inch Rod Diameter, 4.43 Inch Groove OD, Inch Groove Width

AN-37 AN Style Urethane Wiper Ring

3.997

4.427

AN Style Urethane Wiper Ring, 4.50 Inch Rod Diameter, 4.93 Inch Groove OD, Inch Groove Width

AN-41 AN Style Urethane Wiper Ring

4.497

4.927

AN Style Urethane Wiper Ring, 5.00 Inch Rod Diameter, 5.43 Inch Groove OD, Inch Groove Width

AN-45 AN Style Urethane Wiper Ring

4.997

5.427

AN Style Urethane Wiper Ring, 5.50 Inch Rod Diameter, 5.93 Inch Groove OD, Inch Groove Width

AN-49 AN Style Urethane Wiper Ring

5.497

5.927
