AN Style Urethane Wiper Ring, 1.00 Inch Rod Diameter, 1.27 Inch Groove OD, Inch Groove Width

Description & Features

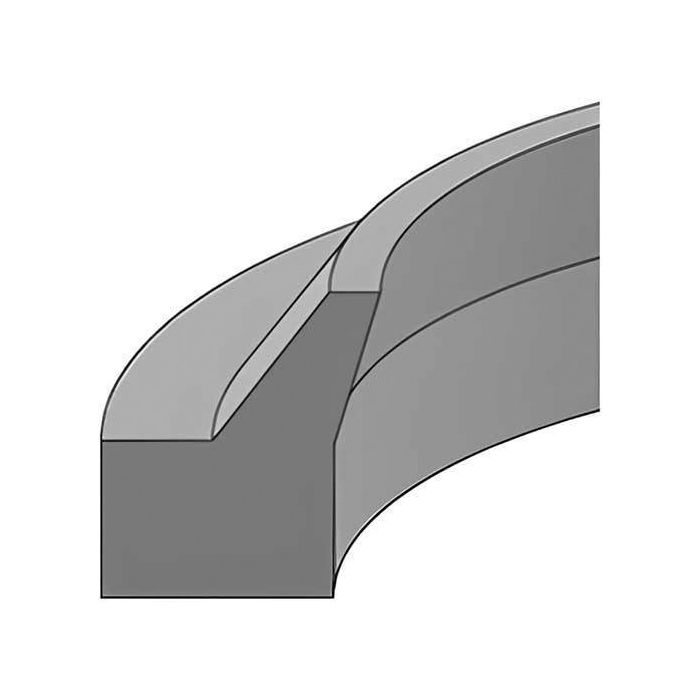

The Hercules Sealing Products urethane wiper ring is an AN style wiper ring designed to keep contaminants from entering hydraulic cylinders. This wiper ring is suitable for use with a 1.00 inch rod diameter and has a 1.27 inch groove OD.

This AN Style Urethane Wiper Ring offers reliable performance in temperatures ranging from -65°F to 220°F.

SKU: AN-09

Supplier Part Number (MPN): AN-09

Alternate Part Numbers: C1CH93, MI-00866402, MINO-00407X10009

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
0.109 in H x 0.104 in THK
Durometer
90
Inside Diameter
1 in
Material
Urethane
Series
AN Series

Similar Products
