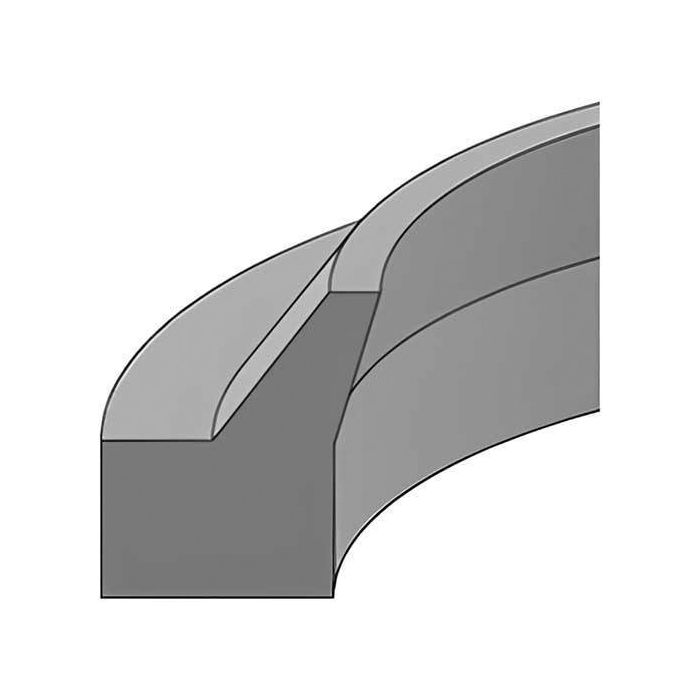

AN Style Urethane Wiper Ring, 3.50 Inch Rod Diameter, 3.86 Inch Groove OD, Inch Groove Width

Ask A Question

Description & Features

Designed for hydraulic cylinder rod sealing applications, the AN Style Urethane Wiper Ring, 3.50 Inch Rod Diameter, 3.86 Inch Groove OD, Inch Groove Width is manufactured by Hercules Sealing Products in urethane construction. Urethane provides strong abrasion resistance and durability under the mechanical demands typical of reciprocating rod movement in hydraulic cylinders.

With a rod diameter of 3.497 inches and a groove OD of 3.864 inches, this wiper ring is sized for precise fitment in AN-style groove configurations. The operating temperature range of -65°F to 220°F makes it suitable for a wide range of industrial hydraulic service conditions. Suffix variants within this product group include a slotted heel design (SH), fluorocarbon material (V), and carboxylated nitrile material (B), offering flexibility for different fluid and environmental compatibility requirements.

SKU: AN-33

Supplier Part Number (MPN): AN-33

Alternate Part Numbers: C1CJ26, MI-00868132, MINO-00407X10028

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
0.125 in H x 0.119 in THK
Durometer
90
Material
Urethane
Series
AN Series

Similar Products

Model Number Rod Diameter A Groove O.D. B Groove Width C Price Action
AN Style Urethane Wiper Ring, 0.62 Inch Rod Diameter, 0.89 Inch Groove OD, Inch Groove Width

AN-03 AN Style Urethane Wiper Ring

0.623

0.885

AN Style Urethane Wiper Ring, 1.00 Inch Rod Diameter, 1.27 Inch Groove OD, Inch Groove Width

AN-09 AN Style Urethane Wiper Ring

0.998

1.272

AN Style Urethane Wiper Ring, 1.25 Inch Rod Diameter, 1.52 Inch Groove OD, Inch Groove Width

AN-13 AN Style Urethane Wiper Ring

1.248

1.522

AN Style Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.30 Inch Groove OD, Inch Groove Width

AN-21 AN Style Urethane Wiper Ring

1.998

2.302

AN Style Urethane Wiper Ring, 2.50 Inch Rod Diameter, 2.80 Inch Groove OD, Inch Groove Width

AN-25 AN Style Urethane Wiper Ring

2.498

2.802

AN Style Urethane Wiper Ring, 0.56 Inch Rod Diameter, 0.82 Inch Groove OD, Inch Groove Width

AN-02 AN Style Urethane Wiper Ring

0.56

0.823

AN Style Urethane Wiper Ring, 0.69 Inch Rod Diameter, 0.95 Inch Groove OD, Inch Groove Width

AN-04 AN Style Urethane Wiper Ring

0.685

0.948

AN Style Urethane Wiper Ring, 0.75 Inch Rod Diameter, 1.01 Inch Groove OD, Inch Groove Width

AN-05 AN Style Urethane Wiper Ring

0.748

1.01

AN Style Urethane Wiper Ring, 0.87 Inch Rod Diameter, 1.15 Inch Groove OD, Inch Groove Width

AN-07 AN Style Urethane Wiper Ring

0.873

1.147

AN Style Urethane Wiper Ring, 0.94 Inch Rod Diameter, 1.21 Inch Groove OD, Inch Groove Width

AN-08 AN Style Urethane Wiper Ring

0.935

1.209

AN Style Urethane Wiper Ring, 1.12 Inch Rod Diameter, 1.40 Inch Groove OD, Inch Groove Width

AN-11 AN Style Urethane Wiper Ring

1.123

1.397

AN Style Urethane Wiper Ring, 1.19 Inch Rod Diameter, 1.46 Inch Groove OD, Inch Groove Width

AN-12 AN Style Urethane Wiper Ring

1.185

1.459

AN Style Urethane Wiper Ring, 1.37 Inch Rod Diameter, 1.68 Inch Groove OD, Inch Groove Width

AN-15 AN Style Urethane Wiper Ring

1.373

1.677

AN Style Urethane Wiper Ring, 1.44 Inch Rod Diameter, 1.74 Inch Groove OD, Inch Groove Width

AN-16 AN Style Urethane Wiper Ring

1.435

1.739

AN Style Urethane Wiper Ring, 1.50 Inch Rod Diameter, 1.80 Inch Groove OD, Inch Groove Width

AN-17 AN Style Urethane Wiper Ring

1.498

1.802

AN Style Urethane Wiper Ring, 1.62 Inch Rod Diameter, 1.93 Inch Groove OD, Inch Groove Width

AN-18 AN Style Urethane Wiper Ring

1.623

1.927

AN Style Urethane Wiper Ring, 1.75 Inch Rod Diameter, 2.05 Inch Groove OD, Inch Groove Width

AN-19 AN Style Urethane Wiper Ring

1.748

2.052

AN Style Urethane Wiper Ring, 1.87 Inch Rod Diameter, 2.18 Inch Groove OD, Inch Groove Width

AN-20 AN Style Urethane Wiper Ring

1.873

2.177

AN Style Urethane Wiper Ring, 2.12 Inch Rod Diameter, 2.43 Inch Groove OD, Inch Groove Width

AN-22 AN Style Urethane Wiper Ring

2.123

2.427

AN Style Urethane Wiper Ring, 2.25 Inch Rod Diameter, 2.55 Inch Groove OD, Inch Groove Width

AN-23 AN Style Urethane Wiper Ring

2.248

2.552

AN Style Urethane Wiper Ring, 2.37 Inch Rod Diameter, 2.68 Inch Groove OD, Inch Groove Width

AN-24 AN Style Urethane Wiper Ring

2.373

2.677

AN Style Urethane Wiper Ring, 2.62 Inch Rod Diameter, 2.99 Inch Groove OD, Inch Groove Width

AN-26 AN Style Urethane Wiper Ring

2.623

2.989

AN Style Urethane Wiper Ring, 3.00 Inch Rod Diameter, 3.36 Inch Groove OD, Inch Groove Width

AN-29 AN Style Urethane Wiper Ring

2.997

3.364

AN Style Urethane Wiper Ring, 3.25 Inch Rod Diameter, 3.61 Inch Groove OD, Inch Groove Width

AN-31 AN Style Urethane Wiper Ring

3.247

3.614

AN Style Urethane Wiper Ring, 3.75 Inch Rod Diameter, 4.11 Inch Groove OD, Inch Groove Width

AN-35 AN Style Urethane Wiper Ring

3.747

4.114

AN Style Urethane Wiper Ring, 4.00 Inch Rod Diameter, 4.43 Inch Groove OD, Inch Groove Width

AN-37 AN Style Urethane Wiper Ring

3.997

4.427

AN Style Urethane Wiper Ring, 4.50 Inch Rod Diameter, 4.93 Inch Groove OD, Inch Groove Width

AN-41 AN Style Urethane Wiper Ring

4.497

4.927

AN Style Urethane Wiper Ring, 5.00 Inch Rod Diameter, 5.43 Inch Groove OD, Inch Groove Width

AN-45 AN Style Urethane Wiper Ring

4.997

5.427

AN Style Urethane Wiper Ring, 5.50 Inch Rod Diameter, 5.93 Inch Groove OD, Inch Groove Width

AN-49 AN Style Urethane Wiper Ring

5.497

5.927
