AN Style Urethane Wiper Rings

Description & Features

Materials	Urethane.
Note	SH suffix designates slotted heel design. V suffix designates fluorocarbon material. B suffix designates carboxilated nitrile material.
Temperature Range	-65°F to 220°F.

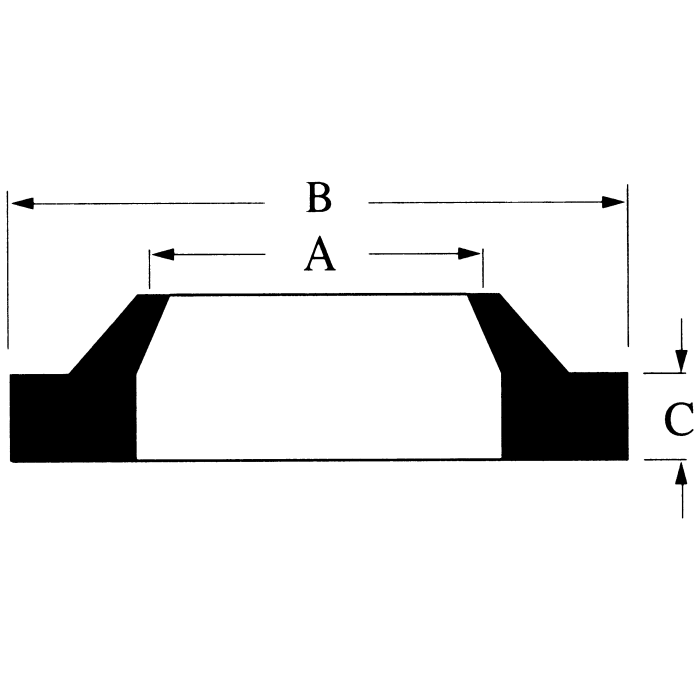

Model Number	Rod Diameter A	Groove O.D. B
AN-03 AN Style Urethane Wiper Ring	0.623	0.885
AN-09 AN Style Urethane Wiper Ring	0.998	1.272
AN-13 AN Style Urethane Wiper Ring	1.248	1.522
AN-21 AN Style Urethane Wiper Ring	1.998	2.302
AN-25 AN Style Urethane Wiper Ring	2.498	2.802
AN-02 AN Style Urethane Wiper Ring	0.56	0.823
AN-04 AN Style Urethane Wiper Ring	0.685	0.948
AN-05 AN Style Urethane Wiper Ring	0.748	1.01
AN-07 AN Style Urethane Wiper Ring	0.873	1.147
AN-08 AN Style Urethane Wiper Ring	0.935	1.209
AN-11 AN Style Urethane Wiper Ring	1.123	1.397
AN-12 AN Style Urethane Wiper Ring	1.185	1.459
AN-15 AN Style Urethane Wiper Ring	1.373	1.677
AN-16 AN Style Urethane Wiper Ring	1.435	1.739
AN-17 AN Style Urethane Wiper Ring	1.498	1.802
AN-18 AN Style Urethane Wiper Ring	1.623	1.927
AN-19 AN Style Urethane Wiper Ring	1.748	2.052
AN-20 AN Style Urethane Wiper Ring	1.873	2.177
AN-22 AN Style Urethane Wiper Ring	2.123	2.427
AN-23 AN Style Urethane Wiper Ring	2.248	2.552
AN-24 AN Style Urethane Wiper Ring	2.373	2.677
AN-26 AN Style Urethane Wiper Ring	2.623	2.989
AN-29 AN Style Urethane Wiper Ring	2.997	3.364
AN-31 AN Style Urethane Wiper Ring	3.247	3.614
AN-33 AN Style Urethane Wiper Ring	3.497	3.864
AN-35 AN Style Urethane Wiper Ring	3.747	4.114
AN-37 AN Style Urethane Wiper Ring	3.997	4.427
AN-41 AN Style Urethane Wiper Ring	4.497	4.927
AN-45 AN Style Urethane Wiper Ring	4.997	5.427
AN-49 AN Style Urethane Wiper Ring	5.497	5.927
