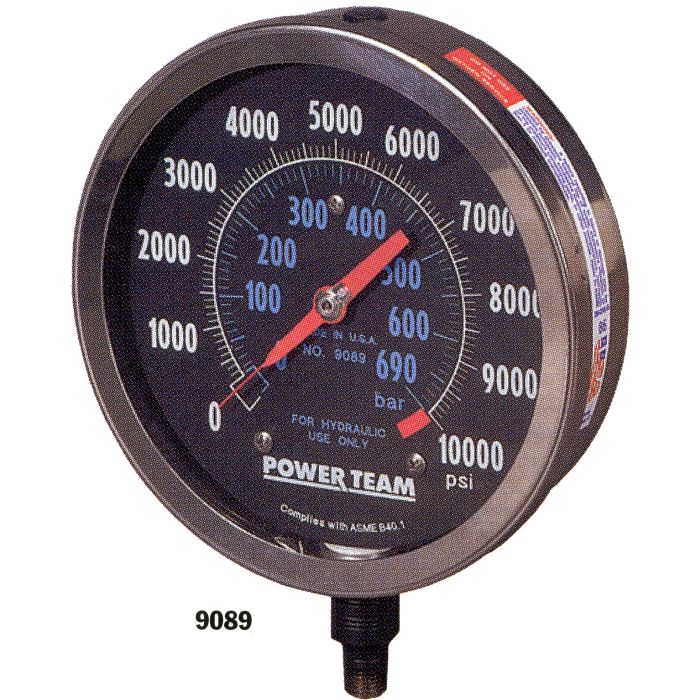

Analog Pressure Gauges

Description & Features

Features

Gauges feature an easily readable and highly visible, red day-glo needle • High strength steel bourdon tube ensures high cycle life • Stainless steel cases and lens locking rings • Most dry gauges can be filled with silicone (Kit #9046) • Have 1/4'' NPT connections.

Products

Model Number	Diameter (in)	Capacity (tons)	Major Graduations	Fill Type	For Use With
9040 Analog Pressure Gauge	2-1/2	--	2500 PSI	Silicone Filled	All
9041 Analog Pressure Gauge	2-1/2	--	2500 PSI	Dry	All
9052 Analog Pressure Gauge	4	--	1000 PSI	Silicone Filled	All
9055 Analog Pressure Gauge	4	0 - 10	2000 PSI, 1 Ton	Dry	C, RD, RH, RLS & RSS
9063 Analog Pressure Gauge	4	0 - 25	2000 PSI, 5 Ton	Dry	C & RD
9065 Analog Pressure Gauge	4	0 - 30	2000 PSI, 5 Ton	Dry	RH, RLS & RSS
9069 Analog Pressure Gauge	4	0 - 55	2000 PSI, 5 Ton	Dry	C, R, RA & RD
9071 Analog Pressure Gauge	4	0 - 60	2000 PSI, 5 Ton	Dry	RH
9075 Analog Pressure Gauge	4	0 - 100	2000 PSI, 10 Ton	Dry	C, R, RA, RD, RH. RLS, RSS &RT1004
9079 Analog Pressure Gauge	4	0 - 200	2000 PSI, 20 Ton	Dry	R, RD & RH

Product Questions & Answers (1)

Question by: Dean F on Jul 11, 2025, 4:54 PM

What kind of environments can these gauges hold up in? I work in a pretty tough shop.

Answer by: Customer Support on Jul 13, 2025, 7:15 AM

These gauges have stainless steel cases and lens locking rings, so they're built to withstand harsh conditions in industrial settings. They should hold up well in your shop.
