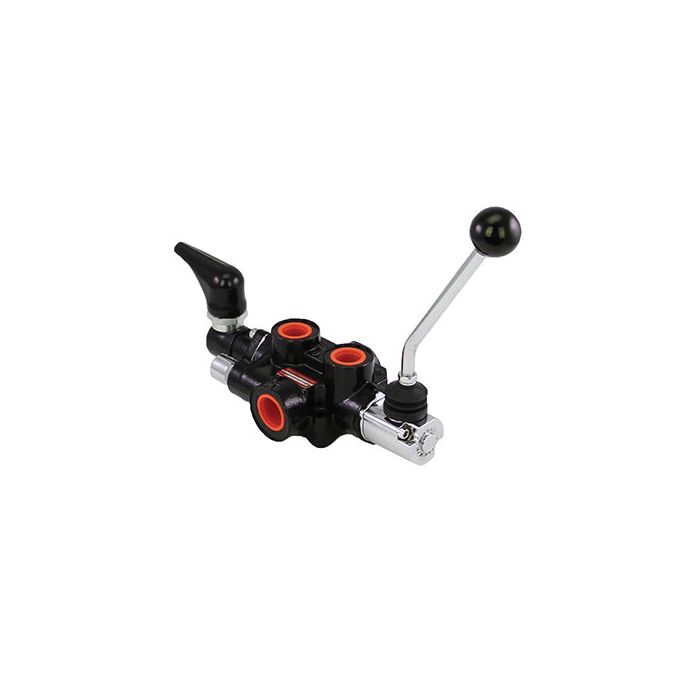

AO755 Series 1-Spool Monoblock Valve, 4-way 3-position, Tandem Center Spring Centered Spool

Ask A Question

Description & Features

The 4-way, 3-position design of this monoblock valve allows for precise control and efficient metering in diverse applications. Featuring a spring-centered spool, this valve ensures smooth and responsive operation.

Designed with a cast iron body and precision ground chrome plated spool, this monoblock valve is built to endure rigorous conditions. The inclusion of Buna-N O-rings and a black nylon ball knob further contributes to its durability and ease of use. The valve is equipped with a 3/4 NPT inlet & outlet and 1/2 NPT work ports, making it versatile for various configurations.

Small and compact, the AO755 valve offers 18 GPM flow rating and can withstand a maximum operating pressure of 3000 PSI. It is recommended to use 30-micron filtration to ensure optimal performance and longevity.

Supplier Part Number: AO755T4LS

Specifications

Brand
Brand Hydraulics
Actuator Type
Lever
Body Material
Iron
Circuit Type
Tandem Center
Color
Black
Configuration
Tandem Center Spool
Connection Type
NPT
Dimensions
11 in L x 3.94 in W x 8.8 in H
grp Recommended Filtration
30 um
Handle Material
Nylon
Key
D
Number of Handles
1
Number of Ports/Ways
4
Number of Positions
3
Product Model
Mono-Block
Seal Material
Buna-N
Series
AO Series
Softgoods Material
Buna-N
Spool Action
Spring Centered

Similar Products

Model Number Key Type Spool Action Circuit Type Ports Features Price Action
AO755 Series 1-Spool Monoblock Valve, 4-way, Open Center Friction Detent Spool

AO755-04LF1 AO755 Series Monoblock Valve

A

4-way

Friction Detent

Open Center

3/4NPT Inlet & Outlet 1/2NPT Work Ports

No Relief

AO755 Series 1-Spool Monoblock Valve, 4-way 3-position, Tandem Center Detented Spool

AO755-T4-LD AO755 Series Monoblock Valve

F

4-way 3-position

Detented

Tandem Center

3/4NPT Inlet & Outlet 1/2NPT Work Ports

No Relief

AO755 Series 1-Spool Monoblock Valve, 4-way 3-position, Tandem Center Spring Centered Spool

AO755-T4-LRS AO755 Series Monoblock Valve

G

4-way 3-position

Spring Centered

Tandem Center

3/4NPT Inlet & Outlet 1/2NPT Work Ports

Adjustable Relief (Set @ 1500 PSI)

AO755 Series 1-Spool Monoblock Valve, 4-way 3-position, Closed Center Detented Spool

AO755C4LD AO755 Series Monoblock Valve

C

4-way 3-position

Detented

Closed Center

3/4NPT Inlet & Outlet 1/2NPT Work Ports

No Relief

Product Questions & Answers (4)

Question by: Chad J on Nov 27, 2025, 9:25 AM
got a compact power unit on a small trailer, is this valve gonna handle 18 gpm and 3000 psi without being the bottleneck?
Answer by: Customer Support on Nov 29, 2025, 6:49 AM
With an 18 GPM flow rating and a 3000 PSI maximum operating pressure, it fits systems in that range. It is a small, compact monoblock valve, so it is often chosen when space is tight but you still need a full 4-way, 3-position manual valve.
Question by: Wayne T on Jul 10, 2025, 8:33 AM
got a log splitter setup, how’s the lever supposed to act on this one, does it stay put or spring back?
Answer by: Customer Support on Jul 11, 2025, 3:04 PM
After you let go of the handle, the spring centered spool returns the valve back to center on its own, so it does not stay latched in a work position.
Question by: Brent R on Sep 19, 2025, 7:04 AM
flow rating on this thing is 18 GPM, is that enough for running a single cylinder on a mid-size log splitter or skid steer attachment?
Answer by: Customer Support on Sep 20, 2025, 3:59 PM
For a single-cylinder setup on something like a log splitter or a light skid steer attachment, 18 GPM is generally plenty. The valve handles up to 18 GPM and 3000 PSI, so it fits well within the typical demand of those kinds of single-actuator systems. Just keep in mind the tank port needs to run directly back to tank, not tied into a shared return line, so plan your hydraulic connections accordingly.
Question by: Vince W on Nov 30, 2025, 7:50 AM
Will this valve work okay with standard hydraulic fluid, or do I need something special?
Answer by: Customer Support on Dec 2, 2025, 6:16 AM
This monoblock valve is designed with Buna-N O-rings, which are compatible with standard hydraulic fluids. Using 30-micron filtration is recommended for optimal performance and to help ensure a long service life.
