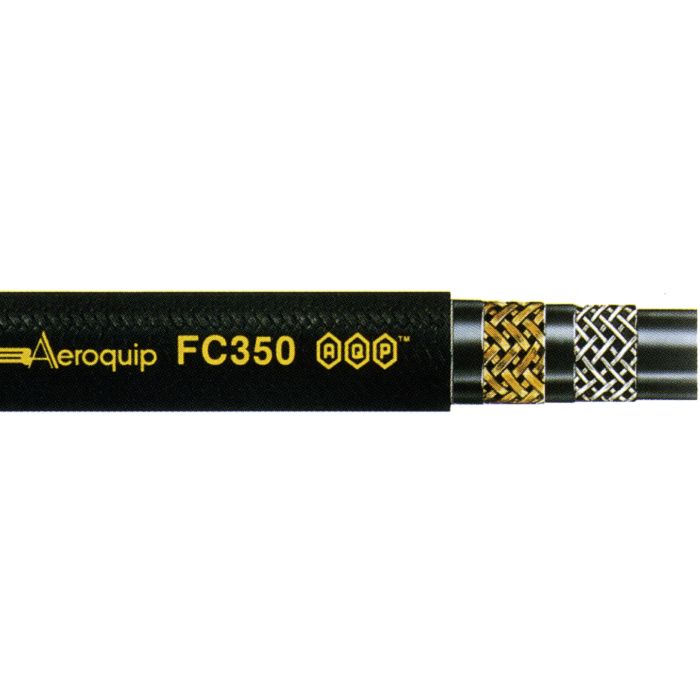

AQP Engine & Air Brake Black Polyester Braid Hose
Description & Features
| Application | Air, gasoline, fuel, lubricating oils and coolants. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
| Construction | AQP® elastomer tube, polyester inner braid and a single wire braid reinforcement, black polyester textile braided cover. |
| Temperature Range | -55°F to +300°F, except air +250°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
FC350-04 AQP Engine & Air Brake Hose |
0.19 |
0.52 |
2000 |
|
0.75 |
28 |
500-650 |
|
|
FC350-06 AQP Engine & Air Brake Hose |
0.31 |
0.68 |
1500 |
|
1.25 |
28 |
320-420 |
|
|
FC350-08 AQP Engine & Air Brake Hose |
0.41 |
0.77 |
1250 |
|
1.75 |
28 |
450-600 |
|
|
FC350-10 AQP Engine & Air Brake Hose |
0.5 |
0.94 |
1250 |
|
2.25 |
28 |
310-400 |
|
|
FC350-12 AQP Engine & Air Brake Hose |
0.62 |
1.08 |
750 |
|
2.75 |
20 |
230-300 |
|
|
FC350-16 AQP Engine & Air Brake Hose |
0.88 |
1.23 |
400 |
|
3.5 |
15 |
180-240 |
|
|
FC350-20 AQP Engine & Air Brake Hose |
1.12 |
1.5 |
300 |
|
4.5 |
15 |
120-160 |
|
|
FC350-24 AQP Engine & Air Brake Hose |
1.38 |
1.75 |
250 |
|
5.5 |
11 |
100-150 |
|
Product Questions & Answers (1)
Question by: Howard S on Aug 30, 2025, 12:38 PM
Can this hose handle regular gasoline, or just the fancy stuff?
Answer by: Customer Support on Sep 1, 2025, 6:44 AM
This AQP Engine & Air Brake Black Polyester Braid Hose is designed to handle air, gasoline, fuel, lubricating oils, and coolants.
