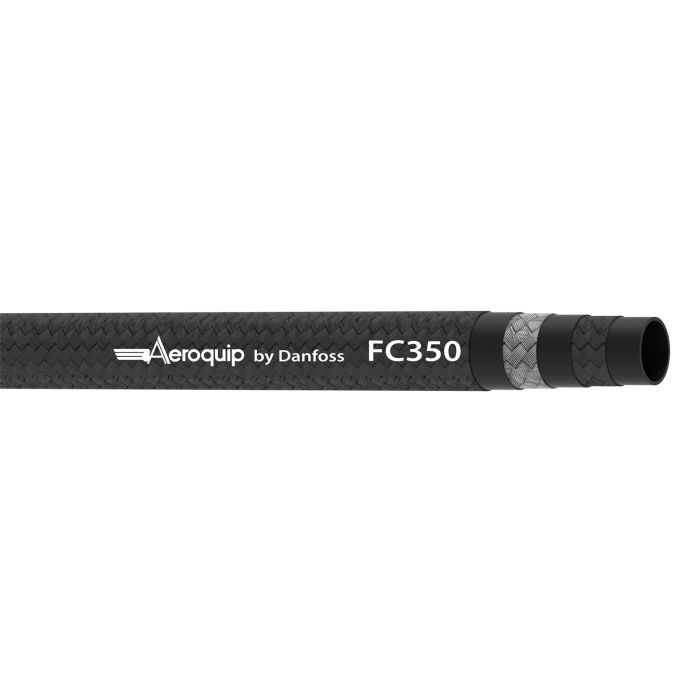

main product photo

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.31 Inch ID, Up to 1500.00 PSI

Ask A Question

Description & Features

The black polyester braid hose manufactured by Danfoss Power Solutions offers robust performance for both engine and air brake applications. Constructed from AQPreg; elastomer, this hose includes a polyester inner braid and a single wire braid reinforcement.

It features a hose inner diameter of 0.31 inches and an outer diameter of 0.68 inches, engineered to withstand a maximum operating pressure of 1500 PSI. Suitable for diverse applications including air, gasoline, fuel, lubricating oils, and coolants, this hose is ideal for demanding environments.

With a minimum bend radius of 1.25 inches and vacuum service capability up to 28 inHg, it guarantees flexibility and durability. The black polyester textile braided cover provides additional protection, ensuring a temperature range of -55deg;F to +300deg;F.

Engineered to meet FMVSS106 standards, the hose is available in reel quantities ranging from 320 to 420 feet. With optimal performance in high-temperature conditions up to +250deg;F for air applications, it stands out as a reliable choice for specialized industrial needs.

ECCN: EAR99

Supplier Part Number: FC350-06RL

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.31
Hose O.D.
0.68
Maximum Operating Pressure
1500
Minimum Bend Radius
1.25
Minimum Bend Radius
1.25
Reel Qty (ft)
320-420
Supplier Part Number
FC350-06RL
Alternate Part Numbers
Alternate Part Number C1CR77, Alternate Part Number FC350-06RL, Alternate Part Number FMC604501, Alternate Part Number MI-00303103, Alternate Part Number MINO-00015F51963, Alternate Part Number MINO-00015F55964
Product Weight
0.52 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.19 Inch ID, Up to 2000.00 PSI

FC350-04 AQP Engine & Air Brake Hose

0.19

0.52

2000

0.75

28

500-650

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.31 Inch ID, Up to 1500.00 PSI

FC350-06 AQP Engine & Air Brake Hose

0.31

0.68

1500

1.25

28

320-420

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI

FC350-08 AQP Engine & Air Brake Hose

0.41

0.77

1250

1.75

28

450-600

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.50 Inch ID, Up to 1250.00 PSI

FC350-10 AQP Engine & Air Brake Hose

0.5

0.94

1250

2.25

28

310-400

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.62 Inch ID, Up to 750.00 PSI

FC350-12 AQP Engine & Air Brake Hose

0.62

1.08

750

2.75

20

230-300

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC350-16 AQP Engine & Air Brake Hose

0.88

1.23

400

3.5

15

180-240

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI

FC350-20 AQP Engine & Air Brake Hose

1.12

1.5

300

4.5

15

120-160

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC350-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

100-150

Product Questions & Answers (2)

Question by: Kent W on Sep 10, 2025, 3:53 PM
How well does this AQP hose hold up under high pressure?
Answer by: Customer Support on Sep 12, 2025, 2:15 PM
This AQP Engine & Air Brake Black Polyester Braid Hose is built to handle pressures up to 1500 PSI, making it reliable for demanding applications. It's designed to meet FMVSS106 standards, ensuring consistent performance in high-pressure environments.
Question by: Harvey P on Oct 21, 2025, 7:18 PM
reckon this hose can handle the full 1500 psi without bustin in a truck's air brake setup
Answer by: Customer Support on Oct 23, 2025, 8:15 AM
Eaton's AQP hose meets FMVSS106 standards for air brake use and is rated for up to 1500 PSI, so it works well in engine or brake applications where that pressure level is needed.
