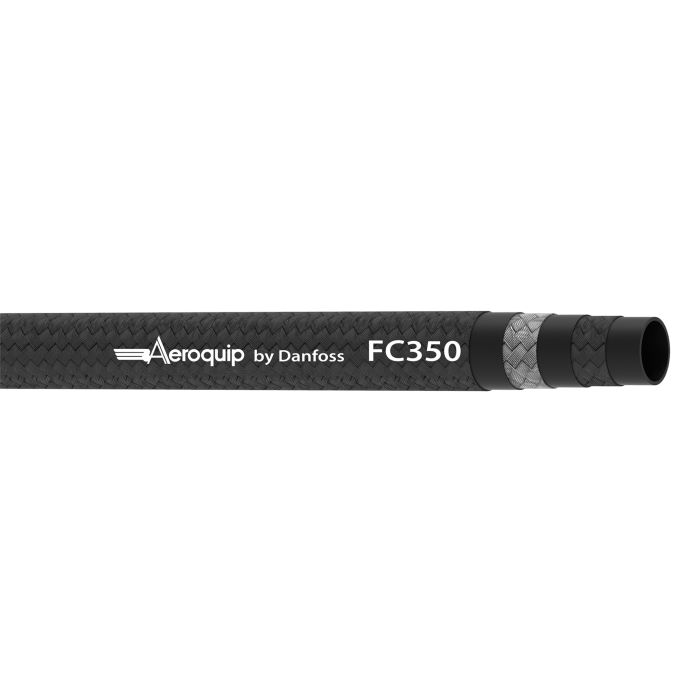

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI

Ask A Question

Description & Features

The AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI is designed to deliver consistent performance in demanding conditions. Produced by Danfoss Power Solutions (II LLC Aeroquip), this hose features an AQPreg; elastomer tube, polyester inner braid, and a single wire braid reinforcement for optimal durability.

Its black polyester textile braided cover enhances its resistance to chemicals, oils, and fuels. With a temperature range from -55deg;F to +300deg;F, except air at up to +250deg;F, it operates efficiently in various industrial environments. This hose also offers a substantial maximum operating pressure of 1250 PSI and has a hose outside diameter of 0.77 inches.

Ideal for applications involving air, gasoline, fuel, lubricating oils, and coolants, it boasts a vacuum service rating of 28 inches Hg and a minimum bend radius of 1.75 inches, ensuring flexibility and ease of use.

MPN: FC350-08RL

Supplier Part Number: FC350-08RL

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.41
Hose O.D.
0.77
Maximum Operating Pressure
1250
Minimum Bend Radius
1.75
Minimum Bend Radius
1.75
Reel Qty (ft)
450-600
Supplier Part Number
FC350-08RL
Alternate Part Numbers
Alternate Part Number C1CR78, Alternate Part Number FC350-08RL, Alternate Part Number MI-00303039, Alternate Part Number MINO-00015F51899, Alternate Part Number MINO-00015F55965
Product Weight
0.59 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.19 Inch ID, Up to 2000.00 PSI

FC350-04 AQP Engine & Air Brake Hose

0.19

0.52

2000

0.75

28

500-650

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.31 Inch ID, Up to 1500.00 PSI

FC350-06 AQP Engine & Air Brake Hose

0.31

0.68

1500

1.25

28

320-420

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI

FC350-08 AQP Engine & Air Brake Hose

0.41

0.77

1250

1.75

28

450-600

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.50 Inch ID, Up to 1250.00 PSI

FC350-10 AQP Engine & Air Brake Hose

0.5

0.94

1250

2.25

28

310-400

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.62 Inch ID, Up to 750.00 PSI

FC350-12 AQP Engine & Air Brake Hose

0.62

1.08

750

2.75

20

230-300

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC350-16 AQP Engine & Air Brake Hose

0.88

1.23

400

3.5

15

180-240

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI

FC350-20 AQP Engine & Air Brake Hose

1.12

1.5

300

4.5

15

120-160

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC350-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

100-150

Product Questions & Answers (6)

Question by: Kirk C on Mar 24, 2025, 7:32 AM
trying to swap out a hose on an air brake setup, is this the one that meets fmvss106 and what size are we talkin
Answer by: Customer Support on Mar 25, 2025, 11:10 AM
For air brake use, it is rated to FMVSS106 and it has a 0.41 inch inside diameter with a 0.77 inch outside diameter.
Question by: Kent P on Jun 21, 2025, 7:15 AM
hose gonna hold up running coolant and fuel lines on a diesel engine? temps get pretty nasty under the hood
Answer by: Customer Support on Jun 22, 2025, 7:44 AM
Rated for service up to 300°F, this hose handles coolant and fuel applications in engine compartments without issue. The AQP elastomer tube paired with polyester inner braid and single wire reinforcement gives it solid resistance to the kind of heat and pressure cycling you'd see on a working diesel. Just keep in mind the air brake side tops out at 250°F rather than the full 300, so if you're routing air lines near a high-heat zone, factor that in.
Question by: Hank J on Aug 14, 2025, 5:13 PM
What kind of stuff can I run through this hose? I'm using it in my garage.
Answer by: Customer Support on Aug 16, 2025, 6:47 AM
This AQP hose handles air, gasoline, fuel, lubricating oils, and coolants. Just make sure to review the guidelines for selection, installation, and maintenance.
Question by: Dale G on Nov 14, 2025, 11:05 AM
got a tight little spot to snake this through, how sharp can i bend it without kinkin it
Answer by: Customer Support on Nov 16, 2025, 6:37 AM
For routing, the minimum bend radius on this hose is 1.75 inches. Staying at or above that bend radius helps it flex without kinking, and the hose OD is 0.77 inches if you are checking clearance.
Question by: Melvin T on Aug 26, 2025, 12:34 PM
What kind of fluids can I run through this hose, besides air?
Answer by: Customer Support on Aug 28, 2025, 7:11 AM
This hose is good for gasoline, fuel, lubricating oils, and coolants.
Question by: Glen G on Jan 9, 2026, 8:46 AM
hose rated for air brake lines on a diesel truck, or is it just for engine stuff?
Answer by: Customer Support on Jan 11, 2026, 8:11 AM
Air brake applications are explicitly covered by this hose. It carries the FMVSS106 rating, which is the federal standard specifically required for air brake hose used on motor vehicles. The one thing worth noting is the temperature limit for air service: while the hose handles fluids up to 300 degrees F, compressed air use is capped at 250 degrees F. For most diesel truck air brake setups that falls well within normal operating range.
